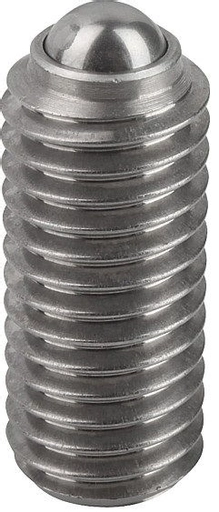

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.

Item Code: K0316.04

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.

Item Code: K0316.04

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Ball hardened.

Quick Links

45 in stock

D: M4

L: 10

D1: 2,5

H: 0,8

S: 2

Spring force initial pressure F1 approx. N: 4

Spring force final pressure F2 approx. N: 10

£4.04 ea. Excl VAT £4.85 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£3.39	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Ball hardened.

D	M4
L	10
D1	2,5
H	0,8
S	2
Spring force initial pressure F1 approx. N	4
Spring force final pressure F2 approx. N	10
