K0316 - Spring Plungers With Hexagon Socket And Ball In Stainless Steel

K0316 - Spring Plungers With Hexagon Socket And Ball In Stainless Steel

List view Grid view

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

Version:
Bright. Ball hardened.

Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 130N. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

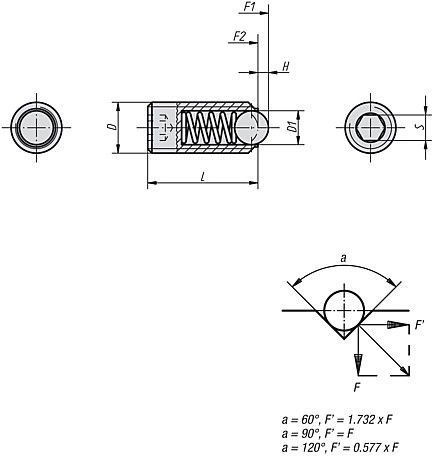

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.03 View product Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Stainless Steel.	M3	9	1,5	0,4	1,5	1,5	3	£4.78 £5.74		7 7 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.203 View product Spring Plunger. Thread M3. Length 9mm. Ball Diameter 1.5mm. Spring Force 5N. Stainless Steel.	M3	9	1,5	0,4	1,5	5	7	£5.28 £6.34		4 4 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.04 View product Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.	M4	10	2,5	0,8	2	4	10	£4.04 £4.85		45 45 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.204 View product Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Stainless Steel.	M4	10	2,5	0,8	2	12	22	£4.46 £5.35		5 5 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.404 View product Spring Plunger. Thread M4. Length 16mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.	M4	16	2,5	0,8	2	4	10	£4.84 £5.81		7 7 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.05 View product Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.	M5	14	3	0,9	2,5	6	11	£4.04 £4.85		17 17 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.205 View product Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 19N. Stainless Steel.	M5	14	3	0,9	2,5	19	30	£4.46 £5.35		3 3 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.405 View product Spring Plunger. Thread M5. Length 20mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.	M5	20	3	0,9	2,5	6	11	£4.84 £5.81		4 4 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.06 View product Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 9N. Stainless Steel.	M6	15	3,5	1	3	9	13	£4.04 £4.85		0 Dispatched 23/06/25

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.206 View product Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Stainless Steel.	M6	15	3,5	1	3	28	40	£4.46 £5.35		45 45 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.406 View product Spring Plunger. Thread M6. Length 25mm. Ball Diameter 3.5mm. Spring Force 9N. Stainless Steel.	M6	25	3,5	1	3	9	13	£4.84 £5.81		47 47 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.08 View product Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 15N. Stainless Steel.	M8	18	5	1,5	4	15	30	£4.36 £5.23		0 Dispatched 23/06/25

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.208 View product Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 47N. Stainless Steel.	M8	18	5	1,5	4	47	73	£4.84 £5.81		1 1 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.408 View product Spring Plunger. Thread M8. Length 30mm. Ball Diameter 5mm. Spring Force 15N. Stainless Steel.	M8	30	5	1,5	4	15	30	£5.26 £6.31		0 Dispatched 23/06/25

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.10 View product Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 20N. Stainless Steel.	M10	23	6	2	5	20	35	£5.12 £6.14		19 19 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.210 View product Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 66N. Stainless Steel.	M10	23	6	2	5	66	100	£5.57 £6.68		44 44 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.410 View product Spring Plunger. Thread M10. Length 35mm. Ball Diameter 6mm. Spring Force 20N. Stainless Steel.	M10	35	6	2	5	20	35	£6.11 £7.33		18 18 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.12 View product Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.	M12	26	8	2,5	6	30	55	£6.79 £8.15		3 3 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.212 View product Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 66N. Stainless Steel.	M12	26	8	2,5	6	66	120	£7.46 £8.95		17 17 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.412 View product Spring Plunger. Thread M12. Length 40mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.	M12	40	8	2,5	6	30	55	£8.04 £9.65		5 5 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.16 View product Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 65N. Stainless Steel.	M16	33	10	3,5	8	65	125	£10.74 £12.89		12 12 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.216 View product Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 90N. Stainless Steel.	M16	33	10	3,5	8	90	180	£11.78 £14.14		8 8 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.416 View product Spring Plunger. Thread M16. Length 45mm. Ball Diameter 10mm. Spring Force 65N. Stainless Steel.	M16	45	10	3,5	8	65	125	£12.86 £15.43		5 5 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.20 View product Spring Plunger. Thread M20. Length 43mm. Ball Diameter 12mm. Spring Force 80N. Stainless Steel.	M20	43	12	4,5	10	80	160	£13.40 £16.08		24 24 in stock

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.220 View product Spring Plunger. Thread M20. Length 43mm. Ball Diameter 12mm. Spring Force 115N. Stainless Steel.	M20	43	12	4,5	10	115	240	£14.69 £17.63		0 Dispatched 23/06/25

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.224 View product Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 130N. Stainless Steel.	M24	48	15	5,5	12	130	270	£24.22 £29.06		0 Dispatched 23/06/25

	D	L	D1	H	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS										Basket
K0316.24 View product Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 90N. Stainless Steel.	M24	48	15	5,5	12	90	180	£21.99 £26.39		0 Dispatched 23/06/25

Showing products per page

Sort by

7 in stock

Item Code: K0316.03

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Stainless Steel.

£4.78 Excl VAT £5.74 Inc VAT

Price breaks available

Text

Qty

4 in stock

Item Code: K0316.203

Spring Plunger. Thread M3. Length 9mm. Ball Diameter 1.5mm. Spring Force 5N. Stainless Steel.

£5.28 Excl VAT £6.34 Inc VAT

Price breaks available

Text

Qty

45 in stock

Item Code: K0316.04

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.

£4.04 Excl VAT £4.85 Inc VAT

Price breaks available

Text

Qty

5 in stock

Item Code: K0316.204

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Stainless Steel.

£4.46 Excl VAT £5.35 Inc VAT

Price breaks available

Text

Qty

7 in stock

Item Code: K0316.404

Spring Plunger. Thread M4. Length 16mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.

£4.84 Excl VAT £5.81 Inc VAT

Price breaks available

Text

Qty

17 in stock

Item Code: K0316.05

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.

£4.04 Excl VAT £4.85 Inc VAT

Price breaks available

Text

Qty

3 in stock

Item Code: K0316.205

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 19N. Stainless Steel.

£4.46 Excl VAT £5.35 Inc VAT

Price breaks available

Text

Qty

4 in stock

Item Code: K0316.405

Spring Plunger. Thread M5. Length 20mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.

£4.84 Excl VAT £5.81 Inc VAT

Price breaks available

Text

Qty

Dispatch by 23/06/25

Item Code: K0316.06

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 9N. Stainless Steel.

£4.04 Excl VAT £4.85 Inc VAT

Price breaks available

Text

Qty

45 in stock

Item Code: K0316.206

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Stainless Steel.

£4.46 Excl VAT £5.35 Inc VAT

Price breaks available

Text

Qty

47 in stock

Item Code: K0316.406

Spring Plunger. Thread M6. Length 25mm. Ball Diameter 3.5mm. Spring Force 9N. Stainless Steel.

£4.84 Excl VAT £5.81 Inc VAT

Price breaks available

Text

Qty

Dispatch by 23/06/25

Item Code: K0316.08

Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 15N. Stainless Steel.

£4.36 Excl VAT £5.23 Inc VAT

Price breaks available

Text

Qty

1 in stock

Item Code: K0316.208

Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 47N. Stainless Steel.

£4.84 Excl VAT £5.81 Inc VAT

Price breaks available

Text

Qty

Dispatch by 23/06/25

Item Code: K0316.408

Spring Plunger. Thread M8. Length 30mm. Ball Diameter 5mm. Spring Force 15N. Stainless Steel.

£5.26 Excl VAT £6.31 Inc VAT

Price breaks available

Text

Qty

19 in stock

Item Code: K0316.10

Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 20N. Stainless Steel.

£5.12 Excl VAT £6.14 Inc VAT

Price breaks available

Text

Qty

44 in stock

Item Code: K0316.210

Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 66N. Stainless Steel.

£5.57 Excl VAT £6.68 Inc VAT

Price breaks available

Text

Qty

18 in stock

Item Code: K0316.410

Spring Plunger. Thread M10. Length 35mm. Ball Diameter 6mm. Spring Force 20N. Stainless Steel.

£6.11 Excl VAT £7.33 Inc VAT

Price breaks available

Text

Qty

3 in stock

Item Code: K0316.12

Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.

£6.79 Excl VAT £8.15 Inc VAT

Price breaks available

Text

Qty

17 in stock

Item Code: K0316.212

Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 66N. Stainless Steel.

£7.46 Excl VAT £8.95 Inc VAT

Price breaks available

Text

Qty

5 in stock

Item Code: K0316.412

Spring Plunger. Thread M12. Length 40mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.

£8.04 Excl VAT £9.65 Inc VAT

Price breaks available

Text

Qty

12 in stock

Item Code: K0316.16

Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 65N. Stainless Steel.

£10.74 Excl VAT £12.89 Inc VAT

Price breaks available

Text

Qty

8 in stock

Item Code: K0316.216

Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 90N. Stainless Steel.

£11.78 Excl VAT £14.14 Inc VAT

Price breaks available

Text

Qty

5 in stock

Item Code: K0316.416

Spring Plunger. Thread M16. Length 45mm. Ball Diameter 10mm. Spring Force 65N. Stainless Steel.

£12.86 Excl VAT £15.43 Inc VAT

Price breaks available

Text

Qty

24 in stock

Item Code: K0316.20

Spring Plunger. Thread M20. Length 43mm. Ball Diameter 12mm. Spring Force 80N. Stainless Steel.

£13.40 Excl VAT £16.08 Inc VAT

Price breaks available

Text

Qty

Dispatch by 23/06/25

Item Code: K0316.220

Spring Plunger. Thread M20. Length 43mm. Ball Diameter 12mm. Spring Force 115N. Stainless Steel.

£14.69 Excl VAT £17.63 Inc VAT

Price breaks available

Text

Qty

Dispatch by 23/06/25

Item Code: K0316.224

Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 130N. Stainless Steel.

£24.22 Excl VAT £29.06 Inc VAT

Price breaks available

Text

Qty

Dispatch by 23/06/25

Item Code: K0316.24

Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 90N. Stainless Steel.
