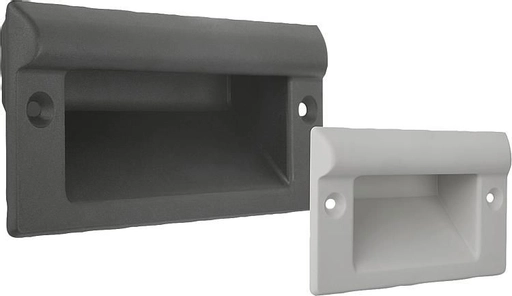

Recessed Handle. Screw On. 97mm Long. 61mm High. Grey.

Item Code: K0242.1112042

Recessed Handle. Screw On. 97mm Long. 61mm High. Grey.

Recessed-handles_1200x1200.jpg?

Item Code: K0242.1112042

Recessed Handle. Screw On. 97mm Long. 61mm High. Grey.

Material:
Glass bead reinforced thermoplastic.
Version:
Semi-matt, black or light grey.
Note:
These ergonomically shaped handles are ideally suited for wall thicknesses of 1-5 mm.
Assembly:
The handle is inserted in the cutout of the housing panel and then fixed from the front with 2 countersunk screws (not supplied).
Drawing reference:
1) for countersunk screws M4

Quick Links

Dispatch by 09/06/25

Colour

L: 97

L1: 130

A: 112

H: 61

T: 25

Load capacity N: 1000

£14.24 ea. Excl VAT £17.09 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£11.68	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Glass bead reinforced thermoplastic.
Version:
Semi-matt, black or light grey.
Note:
These ergonomically shaped handles are ideally suited for wall thicknesses of 1-5 mm.
Assembly:
The handle is inserted in the cutout of the housing panel and then fixed from the front with 2 countersunk screws (not supplied).
Drawing reference:
1) for countersunk screws M4

Product Dimensions

Colour	Grey
L	97
L1	130
A	112
H	61
T	25
Load capacity N	1000

Distance Between Hole Centres	112mm
Bore Size	4.3mm
Handle Material	Thermoplastic
Colour	Grey
