K0242 - Recessed Handles

List view Grid view

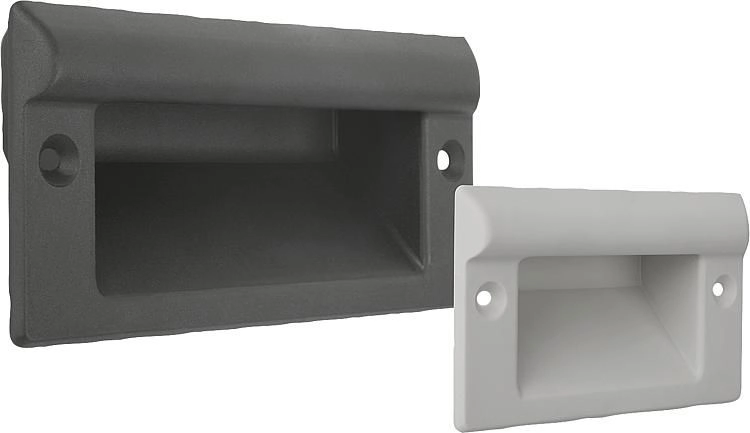

K0242 - Recessed Handles

Material:
Glass bead reinforced thermoplastic.

Version:
Semi-matt, black or light grey.

Note:
These ergonomically shaped handles are ideally suited for wall thicknesses of 1-5 mm.

Assembly:
The handle is inserted in the cutout of the housing panel and then fixed from the front with 2 countersunk screws (not supplied).

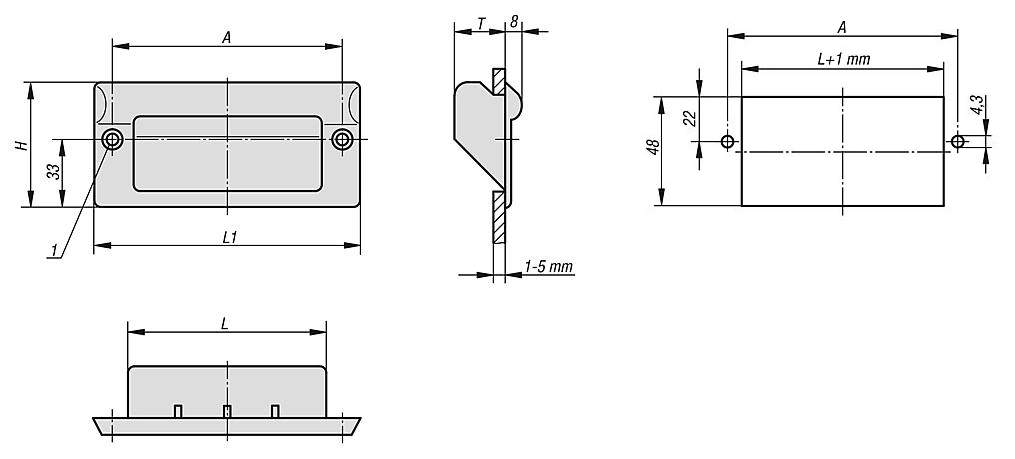

Drawing reference:
1) for countersunk screws M4

Recessed Handle. Screw On. 67mm Long. 61mm High. Black.

K0242 - Recessed Handles

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

A H L L1 Load capacity N T Price (Exc. Tax) Stock Qty basket

Filters

K0242.1082041
View product
82 61 67 100 1000 25
£13.80
0
K0242.1082042
View product
82 61 67 100 1000 25
£13.80
0
K0242.1112041
View product
112 61 97 130 1000 25
£14.65
5
K0242.1112042
View product
112 61 97 130 1000 25
£14.65
0

Showing products per page


£
£

Dispatch by 29/10/25

Item Code: K0242.1082041

Recessed Handle. Screw On. 67mm Long. 61mm High. Black.

£13.80  Excl VAT £16.56  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0242.1082042

Recessed Handle. Screw On. 67mm Long. 61mm High. Grey.

£13.80  Excl VAT £16.56  Inc VAT

Price breaks available

Text

Qty

5 in stock

Item Code: K0242.1112041

Recessed Handle. Screw On. 97mm Long. 61mm High. Black.

£14.65  Excl VAT £17.58  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0242.1112042

Recessed Handle. Screw On. 97mm Long. 61mm High. Grey.

£14.65  Excl VAT £17.58  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Recessed Handle. Screw On. 67mm Long. 61mm High. Black.

Dispatch by 29/10/25

Item Code: K0242.1082041

£13.80  Excl VAT £16.56  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. 67mm Long. 61mm High. Grey.

Dispatch by 29/10/25

Item Code: K0242.1082042

£13.80  Excl VAT £16.56  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. 97mm Long. 61mm High. Black.

5 in stock

Item Code: K0242.1112041

£14.65  Excl VAT £17.58  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. 97mm Long. 61mm High. Grey.

Dispatch by 29/10/25

Item Code: K0242.1112042

£14.65  Excl VAT £17.58  Inc VAT

Price breaks available

Text

Qty

Showing products per page

{
