Item Code: K0204.10012001

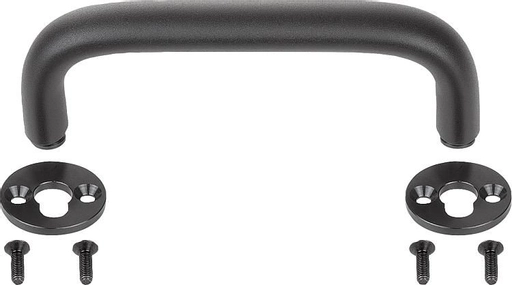

Pull Handle Aluminium. Removable Brackets. 100mm Hole Centres. 58mm High. Black.

Item Code: K0204.10012001

Pull Handle Aluminium. Removable Brackets. 100mm Hole Centres. 58mm High. Black.

Material:
Pull handle oval aluminium EN AW-6060.
Locating pin free-cutting steel 1.0718.
Blanking disc free-cutting steel 1.0718.
Version:
Pull handle black powder-coated.
Locating pin and blanking disc black oxidised.
Note:
The pull handles are mounted on an object by a push-fit system.
Dismantling is carried out when no load is applied.
Application:
Insert the pull handle into the opening until the grip makes contact with the blanking disc.
Lock by holding the handle parallel and pulling up.
The grip can only be subject to vertical loads.
To release, follow the previous instructions in reverse.
Assembly:
An object must be prepared before the blanking disc can be mounted.
See mounting instructions drawing.

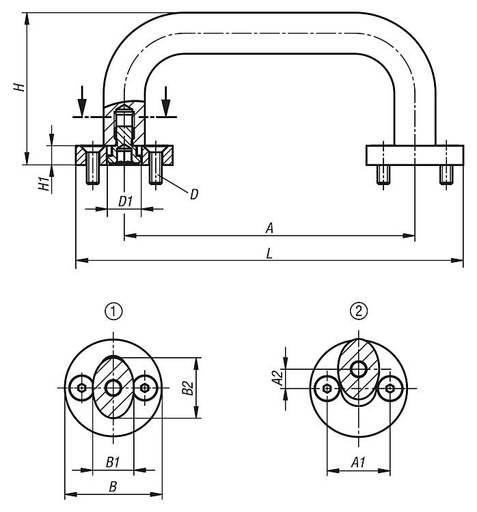

Drawing reference:
1) Position disengaged
2) Position engaged

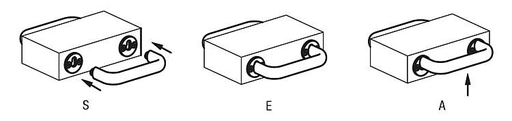

S = insert
E = engage
A = lift

Quick Links

Dispatch by 02/07/25

100
24
7
35
13
21
M5x16
12
58
8
135
1000
oval

£38.35  ea. Excl VAT £46.02  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £31.45 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Pull handle oval aluminium EN AW-6060.
Locating pin free-cutting steel 1.0718.
Blanking disc free-cutting steel 1.0718.
Version:
Pull handle black powder-coated.
Locating pin and blanking disc black oxidised.
Note:
The pull handles are mounted on an object by a push-fit system.
Dismantling is carried out when no load is applied.
Application:
Insert the pull handle into the opening until the grip makes contact with the blanking disc.
Lock by holding the handle parallel and pulling up.
The grip can only be subject to vertical loads.
To release, follow the previous instructions in reverse.
Assembly:
An object must be prepared before the blanking disc can be mounted.
See mounting instructions drawing.
Drawing reference:
1) Position disengaged
2) Position engaged
S = insert
E = engage
A = lift
A100
A124
A27
B35
B113
B221
ColourBlack
DM5x16
D112
H58
H18
L135
Load capacity N1000
Pull handle: cross sectionoval
