4. K0204 - Detachable Pull Handles

Line drawing placeholder

{
    "id": "279",
    "layout_id": "",
    "parent_id": "270",
    "name": "K0204 - Detachable Pull Handles",
    "slug": "k0204-detachable-pull-handles",
    "meta_title": "K0204 - Detachable Pull Handles",
    "meta_description": "",
    "long_description": "",

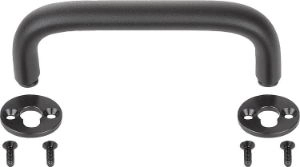

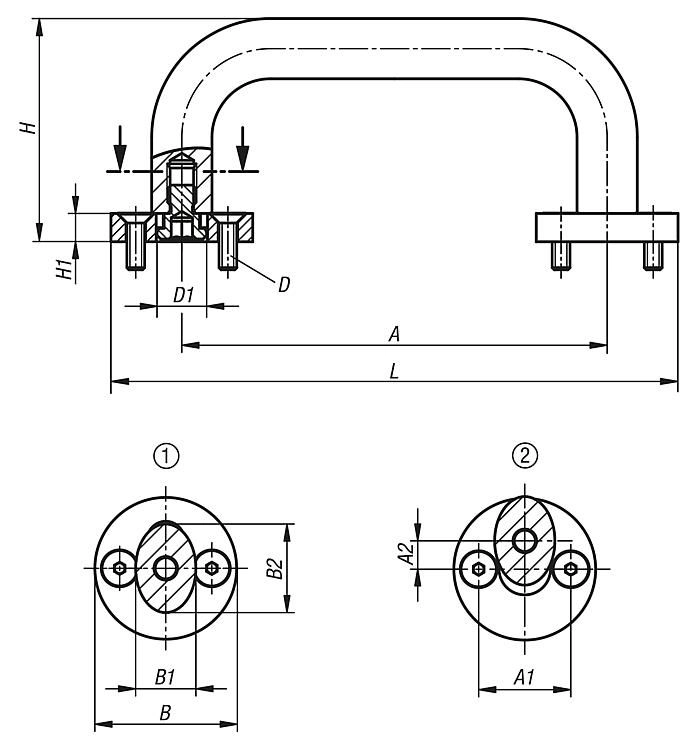

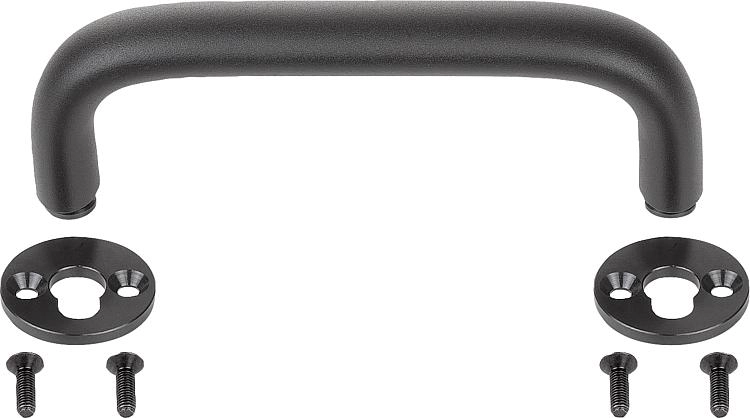

    "short_description": "<div id=\"category-description-short-1\">\r\n<div style=\"text-align: left;\">\r\n<p><strong>Material:<\/strong><br \/>\r\nPull handle, oval aluminium EN AW-6060.<br \/>\r\nLocating pin steel.<br \/>\r\nBlanking disc steel.<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nPull handle black powder-coated.<br \/>\r\nLocating pin and blanking disc black oxidised.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nThe pull handles are mounted on an object by a push-fit system.<br \/>\r\nDismantling is carried out when no load is applied.<\/p>\r\n\r\n<p><strong>Application:<\/strong><br \/>\r\nInsert the pull handle into the opening until the grip makes contact with the blanking disc.<br \/>\r\nLock by holding the handle parallel and pulling up.<br \/>\r\nThe grip can only be subject to vertical loads.<br \/>\r\nTo release, follow the previous instructions in reverse.<\/p>\r\n\r\n<p><strong>Assembly:<\/strong><br \/>\r\nAn object must be prepared before the blanking disc can be mounted.<br \/>\r\nSee mounting instructions drawing.<\/p>\r\n\r\n<p><strong>Drawing reference:<\/strong><\/p>\r\n\r\n<p>1) Position disengaged<br \/>\r\n2) Position engaged<\/p>\r\n<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img src=\"https:\/\/images.shopcdn.co.uk\/bd\/e8\/bde8e0a188a29e70db694dc0f996f916\/698x750\/webp\/resize?quality=100&compression=100\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "521",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:12:42",
    "updated": "2025-07-22 10:36:57",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/06\/35\/0635068ca5d4ad3969d2e02fcb522776\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/06\/35\/0635068ca5d4ad3969d2e02fcb522776\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/06\/35\/0635068ca5d4ad3969d2e02fcb522776\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/06\/35\/0635068ca5d4ad3969d2e02fcb522776\/300x167\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Handles",
    "parent_category_url": "handles",
    "path": "Standard Parts > Handles > K0204 - Detachable Pull Handles",
    "path_list": [
        "Standard Parts",
        "Handles",
        "K0204 - Detachable Pull Handles"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 12,
        "stockLevel": {
            "untracked": 12,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "A",
        "A1",
        "A2",
        "B",
        "B1",
        "B2",
        "Colour",
        "D",
        "D1",
        "H",
        "H1",
        "L",
        "Load capacity N",
        "Pull handle: cross section"
    ]
}
