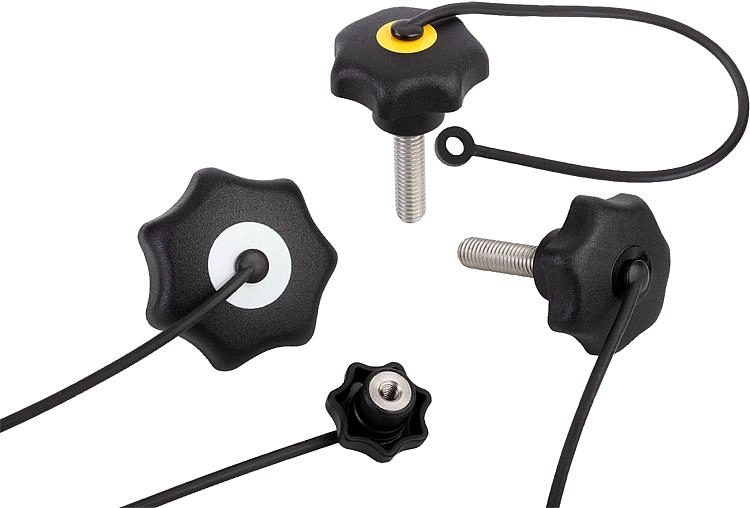

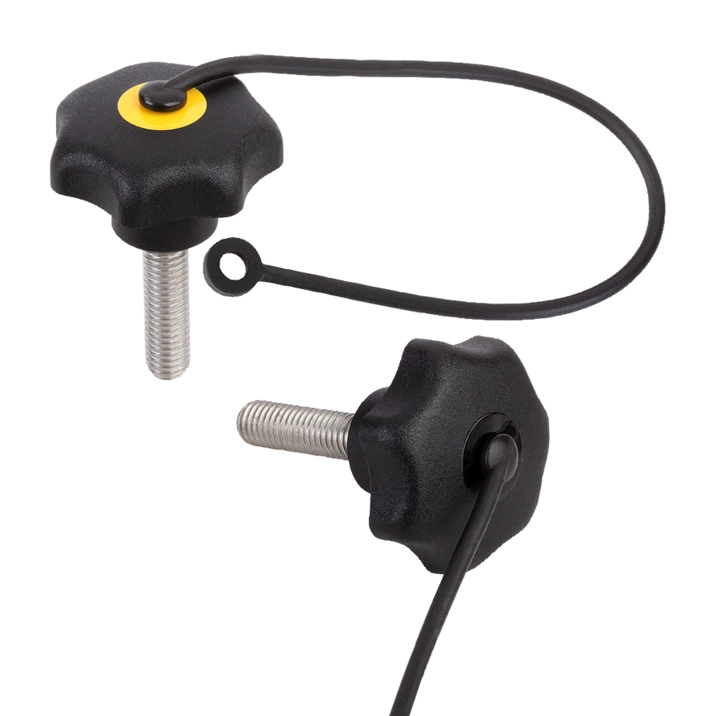

K0154 Star Grip In Plastic & Stainless Steel With Safety Cable Male Thread Size M5-M10

K0154 Star Grip In Plastic & Stainless Steel With Safety Cable Male Thread Size M5-M10

Material:
Star grip thermoplast, threaded bolts stainless steel 1.4305.
Safety cable elastic TPU.

Version:
Threaded pin bright.

Note:
Attach the safety cable to a base to make the star grip unlosable.
The star grip cannot be moved far from the object to which it belongs, simplifying screwing and unscrewing of the grip and ensuring against loss.

Assembly:
Do not stretch the band during assembly.
Make sure that the anchor is not too far from where the star grip is to be used.

Star Grip With Safety Cable. M5x15mm Stainless Steel Thread. 25mm Grip Diameter. Plastic. Grey Cap.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	Colour Cap	D	D1	D8	DIN	Form	H	H3	H5	L	L1	Price (Exc. Tax)	Stock
Filters
K0154.7055X15 View product	Light Grey	M5	25	12	similar to DIN 6336	LS	16	8	22	15	181	£2.15	0
K0154.7055X20 View product	Light Grey	M5	25	12	similar to DIN 6336	LS	16	8	22	20	181	£2.20	0
K0154.7056X15 View product	Red	M5	25	12	similar to DIN 6336	LS	16	8	22	15	181	£2.15	0
K0154.7056X20 View product	Red	M5	25	12	similar to DIN 6336	LS	16	8	22	20	181	£2.20	0
K0154.7057X15 View product	yelow	M5	25	12	similar to DIN 6336	LS	16	8	22	15	181	£2.15	0
K0154.7057X20 View product	yelow	M5	25	12	similar to DIN 6336	LS	16	8	22	20	181	£2.20	0
K0154.705X15 View product	Black	M5	25	12	similar to DIN 6336	LS	16	8	22	15	181	£2.15	49
K0154.705X20 View product	Black	M5	25	12	similar to DIN 6336	LS	16	8	22	20	181	£2.20	0
K0154.7065X20 View product	Light Grey	M6	32	14	similar to DIN 6336	LS	20	10	26	20	181	£2.51	0
K0154.7065X30 View product	Light Grey	M6	32	14	similar to DIN 6336	LS	20	10	26	30	181	£2.55	0
K0154.7066X20 View product	Red	M6	32	14	similar to DIN 6336	LS	20	10	26	20	181	£2.51	0
K0154.7066X30 View product	Red	M6	32	14	similar to DIN 6336	LS	20	10	26	30	181	£2.55	0
K0154.7067X20 View product	yelow	M6	32	14	similar to DIN 6336	LS	20	10	26	20	181	£2.51	0
K0154.7067X30 View product	yelow	M6	32	14	similar to DIN 6336	LS	20	10	26	30	181	£2.55	0
K0154.706X20 View product	Black	M6	32	14	similar to DIN 6336	LS	20	10	26	20	181	£2.51	0
K0154.706X30 View product	Black	M6	32	14	similar to DIN 6336	LS	20	10	26	30	181	£2.55	48
K0154.7085X15 View product	Light Grey	M8	40	18	similar to DIN 6336	LS	25	13	31	15	181	£3.30	0
K0154.7085X20 View product	Light Grey	M8	40	18	similar to DIN 6336	LS	25	13	31	20	181	£3.32	0
K0154.7085X25 View product	Light Grey	M8	40	18	similar to DIN 6336	LS	25	13	31	25	181	£3.36	0
K0154.7085X30 View product	Light Grey	M8	40	18	similar to DIN 6336	LS	25	13	31	30	181	£3.39	0
K0154.7085X40 View product	Light Grey	M8	40	18	similar to DIN 6336	LS	25	13	31	40	181	£3.46	17
K0154.7085X60 View product	Light Grey	M8	40	18	similar to DIN 6336	LS	25	13	31	60	181	£3.59	0
K0154.7086X15 View product	Red	M8	40	18	similar to DIN 6336	LS	25	13	31	15	181	£3.30	0
K0154.7086X20 View product	Red	M8	40	18	similar to DIN 6336	LS	25	13	31	20	181	£3.32	0
K0154.7086X25 View product	Red	M8	40	18	similar to DIN 6336	LS	25	13	31	25	181	£3.36	0
K0154.7086X30 View product	Red	M8	40	18	similar to DIN 6336	LS	25	13	31	30	181	£3.39	0
K0154.7086X40 View product	Red	M8	40	18	similar to DIN 6336	LS	25	13	31	40	181	£3.46	0
K0154.7086X60 View product	Red	M8	40	18	similar to DIN 6336	LS	25	13	31	60	181	£3.59	0
K0154.7087X15 View product	yelow	M8	40	18	similar to DIN 6336	LS	25	13	31	15	181	£3.30	0
K0154.7087X20 View product	yelow	M8	40	18	similar to DIN 6336	LS	25	13	31	20	181	£3.32	0
K0154.7087X25 View product	yelow	M8	40	18	similar to DIN 6336	LS	25	13	31	25	181	£3.36	0
K0154.7087X30 View product	yelow	M8	40	18	similar to DIN 6336	LS	25	13	31	30	181	£3.39	0
K0154.7087X40 View product	yelow	M8	40	18	similar to DIN 6336	LS	25	13	31	40	181	£3.46	0
K0154.7087X60 View product	yelow	M8	40	18	similar to DIN 6336	LS	25	13	31	60	181	£3.59	0
K0154.708X15 View product	Black	M8	40	18	similar to DIN 6336	LS	25	13	31	15	181	£3.30	0
K0154.708X20 View product	Black	M8	40	18	similar to DIN 6336	LS	25	13	31	20	181	£3.32	50
K0154.708X25 View product	Black	M8	40	18	similar to DIN 6336	LS	25	13	31	25	181	£3.36	0
K0154.708X30 View product	Black	M8	40	18	similar to DIN 6336	LS	25	13	31	30	181	£3.39	0
K0154.708X40 View product	Black	M8	40	18	similar to DIN 6336	LS	25	13	31	40	181	£3.46	0
K0154.708X60 View product	Black	M8	40	18	similar to DIN 6336	LS	25	13	31	60	181	£3.59	0
K0154.7105X25 View product	Light Grey	M10	50	22	similar to DIN 6336	LS	32	17	38	25	181	£3.95	0
K0154.7105X30 View product	Light Grey	M10	50	22	similar to DIN 6336	LS	32	17	38	30	181	£4.13	0
K0154.7105X40 View product	Light Grey	M10	50	22	similar to DIN 6336	LS	32	17	38	40	181	£4.23	0
K0154.7105X50 View product	Light Grey	M10	50	22	similar to DIN 6336	LS	32	17	38	50	181	£4.33	0
K0154.7105X60 View product	Light Grey	M10	50	22	similar to DIN 6336	LS	32	17	38	60	181	£4.44	0
K0154.7106X25 View product	Red	M10	50	22	similar to DIN 6336	LS	32	17	38	25	181	£3.95	0
K0154.7106X30 View product	Red	M10	50	22	similar to DIN 6336	LS	32	17	38	30	181	£4.13	0
K0154.7106X40 View product	Red	M10	50	22	similar to DIN 6336	LS	32	17	38	40	181	£4.23	0
