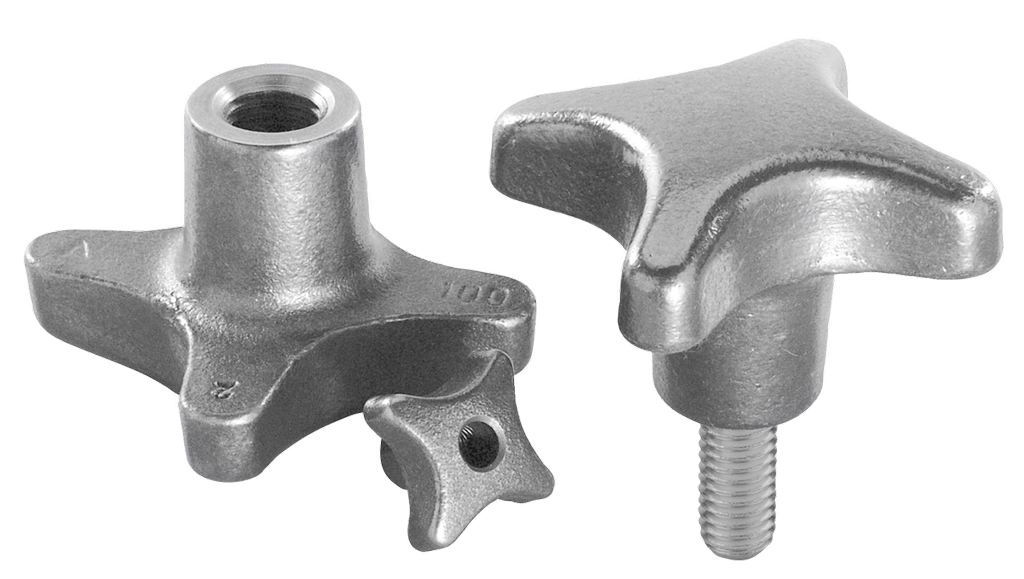

K0147 Inch - Palm Knobs In Cast Iron Four Hole Types

K0147 Inch - Palm Knobs In Cast Iron Four Hole Types

List view Grid view

Material:
gray cast iron GJL 200.

Version:
Vibratory ground.
Bright.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

Drawing reference:
Style B: drilled through
Style C: blind hole
Style D: tapped and drilled
Style E: tapped blind hole

Palm Grip. M10x20mm Thread. 63mm Grip Diameter. Stainless Steel Blasted.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	D1	D2	H	H3	Male/Female	Style	Surface Body finish	Price (Exc. Tax)	Stock
Filters
K0147.3CM View product	0.25	32	12	21	10	Female	C	tumbled	£10.88	0
K0147.2CM View product	0.25	32	12	20	10	Female	B	tumbled	£10.88	0
K0147.3CN View product	0.312	40	14	26	14	Female	C	tumbled	£14.12	0
K0147.2CN View product	0.312	40	14	25	14	Female	B	tumbled	£14.12	0
K0147.3CO View product	0.375	50	18	34	20	Female	C	tumbled	£15.14	0
K0147.2CO View product	0.375	50	18	32	20	Female	B	tumbled	£15.14	0
K0147.3CP View product	0.5	63	20	42	25	Female	C	tumbled	£15.05	0
K0147.2CP View product	0.5	63	20	40	25	Female	B	tumbled	£15.05	0
K0147.3CQ View product	0.625	80	25	52	30	Female	C	tumbled	£17.29	0
K0147.2CQ View product	0.625	80	25	50	30	Female	B	tumbled	£17.29	0
K0147.3CR View product	0.75	100	32	65	38	Female	C	tumbled	£24.64	0
K0147.2CR View product	0.75	100	32	63	38	Female	B	tumbled	£24.64	0
K0147.4A5 View product	1/2-13	63	20	40	25	Female	D	tumbled	£22.55	0
K0147.5A5 View product	1/2-13	63	20	42	25	Female	E	tumbled	£17.68	0
K0147.4A2 View product	1/4-20	32	12	20	10	Female	D	tumbled	£18.64	0
K0147.5A2 View product	1/4-20	32	12	21	10	Female	E	tumbled	£12.42	0
K0147.4A7 View product	3/4-10	100	32	63	38	Female	D	tumbled	£31.15	0
K0147.5A7 View product	3/4-10	100	32	65	38	Female	E	tumbled	£27.54	0
K0147.4A4 View product	3/8-16	50	18	32	20	Female	D	tumbled	£22.40	0
K0147.5A4 View product	3/8-16	50	18	34	20	Female	E	tumbled	£17.64	0
K0147.4A3 View product	5/16-18	40	14	25	14	Female	D	tumbled	£21.40	0
K0147.5A3 View product	5/16-18	40	14	26	14	Female	E	tumbled	£12.83	0
K0147.4A6 View product	5/8-11	80	25	50	30	Female	D	tumbled	£24.69	0
K0147.5A6 View product	5/8-11	80	25	52	30	Female	E	tumbled	£17.90	0
