Item Code: K0118.121112X12

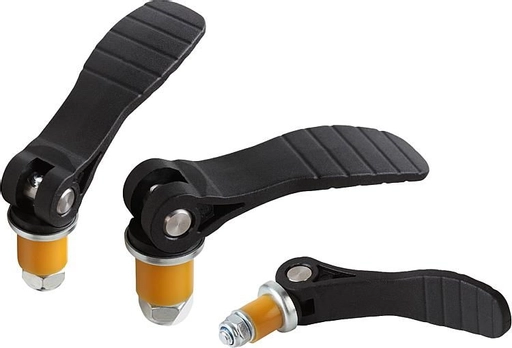

Cam Lever With Elastomer Lock. 71.5mm Handle Length. To Fit 12mm Hole.

Item Code: K0118.121112X12

Cam Lever With Elastomer Lock. 71.5mm Handle Length. To Fit 12mm Hole.

Material:
Handle and thrust washer fibreglass reinforced plastic PA 66.
Hinge pin 1.4305 stainless steel.
Stud and washer steel grade 5.8.
Expanding bush PUR elastomer.
Version:
Handles and thrust washer black.
Hinge pins natural finish.
Screw, washer, locknut and thrust washer blue passivated.
Note:
Actuating the handle causes the elastomer bush to expand and form to the surrounding surface.
The amount of expansion of the elastomer bush and hence the clamping force can be adjusted by tightening or loosening the locknut.
The thread lock in the nut also ensures that the preset clamping force remains unchanged when the clamp is released.

Quick Links

Dispatch by 09/06/25

12
18,1
71,5
22
14
23,2
12,85
16
79,6
10
12
50
100

£10.74  ea. Excl VAT £12.89  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £9.24 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Handle and thrust washer fibreglass reinforced plastic PA 66.
Hinge pin 1.4305 stainless steel.
Stud and washer steel grade 5.8.
Expanding bush PUR elastomer.
Version:
Handles and thrust washer black.
Hinge pins natural finish.
Screw, washer, locknut and thrust washer blue passivated.
Note:
Actuating the handle causes the elastomer bush to expand and form to the surrounding surface.
The amount of expansion of the elastomer bush and hence the clamping force can be adjusted by tightening or loosening the locknut.
The thread lock in the nut also ensures that the preset clamping force remains unchanged when the clamp is released.

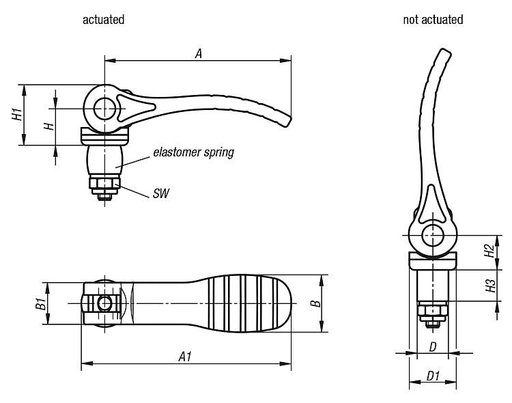

D12
D118,1
A71,5
B22
H14
H123,2
H212,85
B116
A179,6
SW10
H312
Clamping force ca. N plate clamping (no permanent load)50
Clamping force ca. N clamp bore (no permanent load)100
STP
Handle MaterialPlastic
Handle Length71.5mm
ColourBlack
