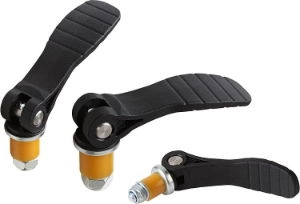

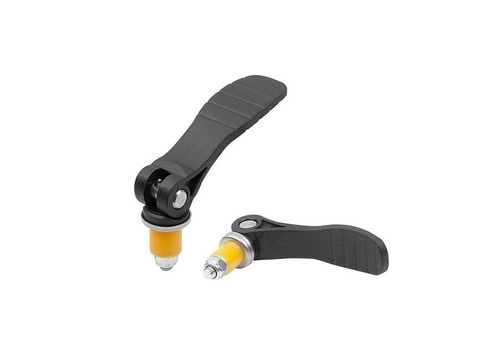

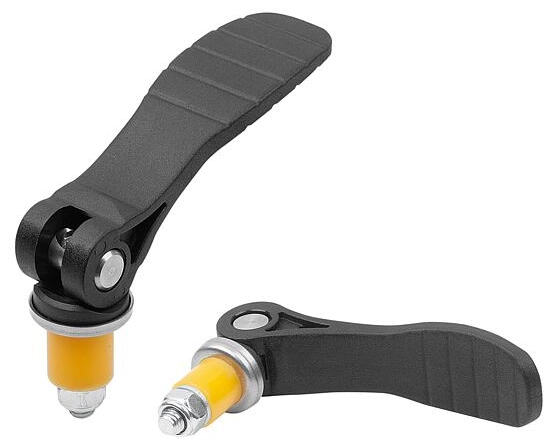

K0118 - Cam Lever With Expanding Elastomer Lock

K0118 - Cam Lever With Expanding Elastomer Lock

Material:
Handle and thrust washer fibreglass reinforced plastic PA 66.
Hinge pin 1.4305 stainless steel.
Stud and washer steel grade 5.8.
Expanding bush PUR elastomer.

Version:
Handles and thrust washer black.
Hinge pins bright.
Screw, washer, locknut and thrust washer trivalent blue-passivated.

Note:
Actuating the handle causes the elastomer bush to expand and form to the surrounding surface.
The amount of expansion of the elastomer bush and hence the clamping force can be adjusted by tightening or loosening the locknut.
The thread lock in the nut also ensures that the preset clamping force remains unchanged when the clamp is released.

Application:
The specified holding forces are not suitable for constant loads.

Cam Lever. 52.3mm Handle Length. M4x20mm Steel Thread

Select your sizes

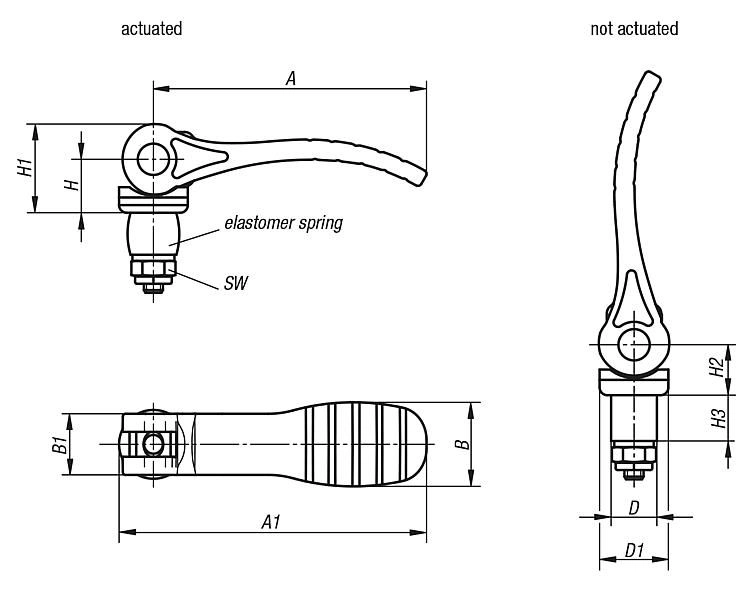

Line drawing placeholder

Move drawing here

	A	A1	B	B1	Clamping force ca. N clamp bore (no permanent load)	Clamping force ca. N plate clamping (no permanent load)	D	D1	H	H1	H2	H3	SW	Price (Exc. Tax)	Stock
Filters
K0118.121112X12 View product	71,5	79,6	22	16	100	50	12	18,1	14	23,2	12,85	12	10	£11.05	0
K0118.121114X12 View product	71,5	79,6	22	16	150	60	14	18,1	14	23,2	12,85	12	10	£11.05	2
K0118.221116X20 View product	99,9	110	33	24	350	60	16	27,1	16,2	27,8	14,7	20	13	£13.76	0
K0118.221118X20 View product	99,9	110	33	24	350	100	18	27,1	16,2	27,8	14,7	20	13	£13.76	0
K0118.221120X20 View product	99,9	110	33	24	350	100	20	27,1	16,2	27,8	14,7	20	16	£14.59	0
