Item Code: K0013.110

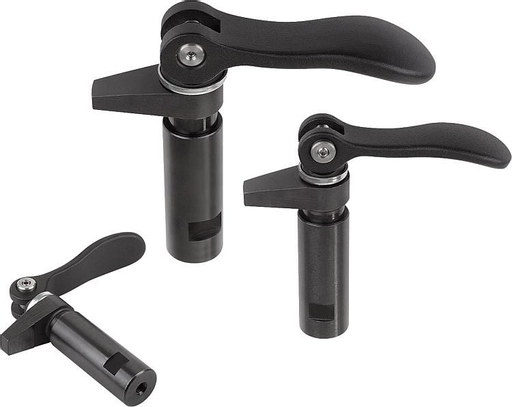

Hook Clamp With Collar & Cam Lever. M10 Thread. 25mm Diameter. Carbon Steel.

Item Code: K0013.110

Hook Clamp With Collar & Cam Lever. M10 Thread. 25mm Diameter. Carbon Steel.

Material:
Body and hook, high-carbon steel.
Handles, cast aluminium EN AC-46200.
Thrust washer, fibreglass reinforced plastic PA 66 GF 35-X.
Hinge pin, stud and washer stainless steel 1.4305.

Version:
Body and hook tempered and black oxidised.
Handles, black powder-coated.
Thrust washer black.
Hinge pin, stud and washer bright.

Note:
Ideal for clamping where the parts are to be inserted from above as the hook can be swivelled out of the way.

The exact clamping height is set by the fine thread on the stud using a screwdriver. This setting can be secured with the locking screw. The length S corresponds to the cam travel.

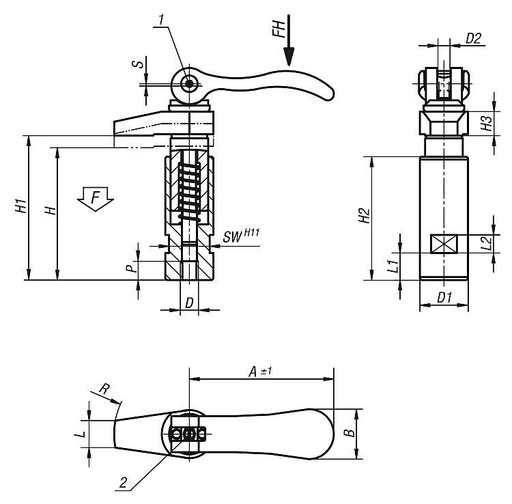

Drawing reference:
1) Locking screw for pin
2) Screw for fine adjustment of lever

Quick Links

Dispatch by 02/07/25

96
33,3
M10
25
M8x0,75
8
72
79
67
12
350
12
13
10
10
40
19
1,5

£112.14  ea. Excl VAT £134.57  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
5 + £105.41 6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Body and hook, high-carbon steel.
Handles, cast aluminium EN AC-46200.
Thrust washer, fibreglass reinforced plastic PA 66 GF 35-X.
Hinge pin, stud and washer stainless steel 1.4305.

Version:
Body and hook tempered and black oxidised.
Handles, black powder-coated.
Thrust washer black.
Hinge pin, stud and washer bright.

Note:
Ideal for clamping where the parts are to be inserted from above as the hook can be swivelled out of the way.

The exact clamping height is set by the fine thread on the stud using a screwdriver. This setting can be secured with the locking screw. The length S corresponds to the cam travel.

Drawing reference:
1) Locking screw for pin
2) Screw for fine adjustment of lever
A96
B33,3
DM10
D125
D2M8x0,75
F kN8
H72
H179
H267
H312
Hand force FH N350
L12
L113
L210
P10
R40
SW19
Travel S1,5
