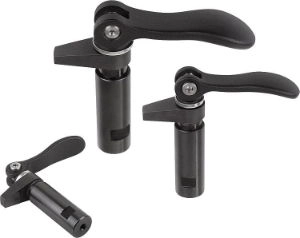

5. Hook Clamps With Collar Cam Lever And Internal Thread

Line drawing placeholder

{
    "id": "256",
    "layout_id": "",
    "parent_id": "250",
    "name": "Hook Clamps With Collar Cam Lever And Internal Thread",
    "slug": "hook-clamps-with-collar-cam-lever-and-internal-thread",
    "meta_title": "Hook Clamps With Collar Cam Lever And Internal Thread",
    "meta_description": "",
    "long_description": "",

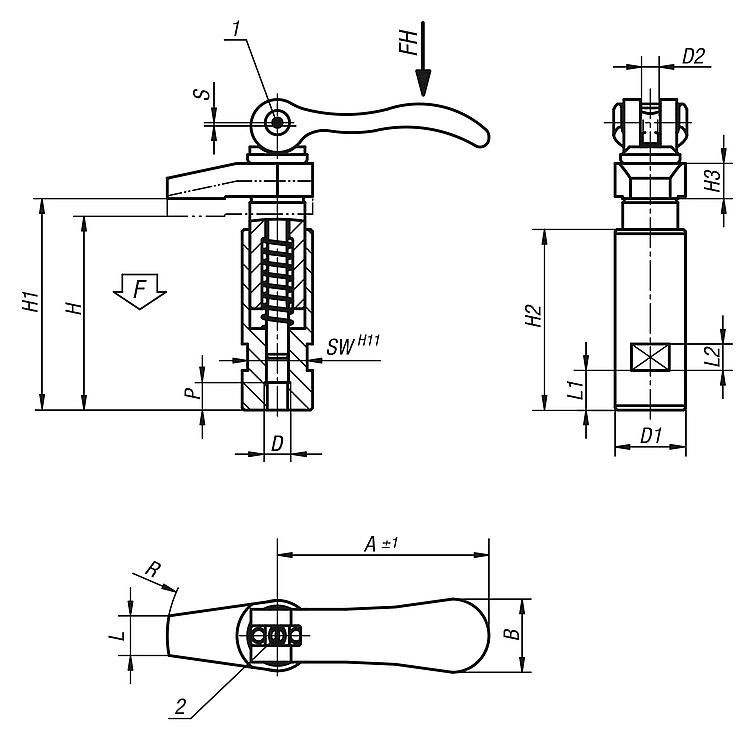

    "short_description": "<div id=\"category-description-short-1\">\r\n<div style=\"text-align: left;\">\r\n<p><strong>Material:<\/strong><br \/>\r\nBody and hook, high-carbon steel.<br \/>\r\nHandles, cast aluminium EN AC-46200.<br \/>\r\nThrust washer, fibreglass reinforced plastic PA 66 GF 35-X.<br \/>\r\nHinge pin, stud and washer stainless steel 1.4305.<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nBody and hook tempered and black oxidised.<br \/>\r\nHandles, black powder-coated.<br \/>\r\nThrust washer black.<br \/>\r\nHinge pin, stud and washer bright.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nIdeal for clamping where the parts are to be inserted from above as the hook can be swivelled out of the way.<br \/>\r\n<br \/>\r\nThe exact clamping height is set by the fine thread on the stud using a screwdriver. This setting can be secured with the locking screw. The length S corresponds to the cam travel.<\/p>\r\n\r\n<p><strong>Drawing reference:<\/strong><br \/>\r\n1) Locking screw for pin<br \/>\r\n2) Screw for fine adjustment of lever<\/p>\r\n<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img src=\"https:\/\/images.shopcdn.co.uk\/5c\/b8\/5cb806088743bdec64fda706c9fae422\/750x738\/webp\/resize?quality=100&compression=100\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "646",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:12:36",
    "updated": "2025-08-05 13:22:05",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/a0\/5f\/a05feb67fb9ccf244c6cc6571204f074\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/a0\/5f\/a05feb67fb9ccf244c6cc6571204f074\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/a0\/5f\/a05feb67fb9ccf244c6cc6571204f074\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/a0\/5f\/a05feb67fb9ccf244c6cc6571204f074\/300x238\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "K0013 - Hook Clamps",
    "parent_category_url": "k0013-hook-clamps",
    "path": "Standard Parts > Clamping Devices For Machining > K0013 - Hook Clamps > Hook Clamps With Collar Cam Lever And Internal Thread",
    "path_list": [
        "Standard Parts",
        "Clamping Devices For Machining",
        "K0013 - Hook Clamps",
        "Hook Clamps With Collar Cam Lever And Internal Thread"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 4,
        "stockLevel": {
            "untracked": 4,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "A",
        "B",
        "D",
        "D1",
        "D2",
        "F\nkN",
        "H",
        "H1",
        "H2",
        "H3",
        "Hand\nforce\nFH N",
        "L",
        "L1",
        "L2",
        "P",
        "R",
        "SW",
        "Travel\nS"
    ]
}
