K0671 - Grey Cast Iron Handwheels Diameter 80-500mm
Back to Cast Iron With Keyway Revolving Handle

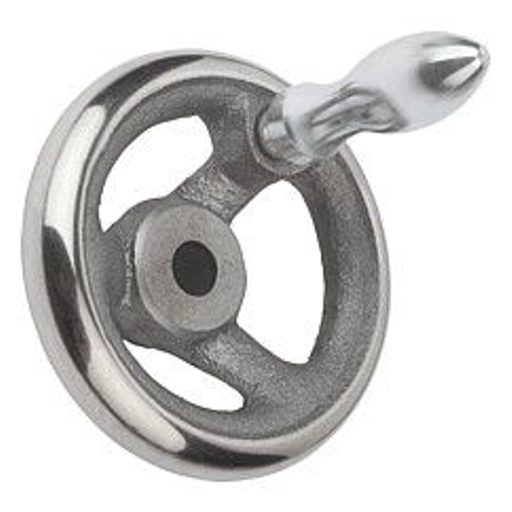

Handwheel. 10mm H7 Reamed Hole. 100mm Overall Diameter. With Keyway. Revolving Handle. Cast Iron.

Item Code: K0671.5100X10

Handwheel. 10mm H7 Reamed Hole. 100mm Overall Diameter. With Keyway. Revolving Handle. Cast Iron.

Z06271-06273Nabennut-nn--en_1200x1200.jpg?

Item Code: K0671.5100X10

Handwheel. 10mm H7 Reamed Hole. 100mm Overall Diameter. With Keyway. Revolving Handle. Cast Iron.

Material:
Handwheel in grey cast iron. Machine handle in steel. Surface finish:
Wheel rim turned and polished.
Concentric and axial tolerance less than IT 12 On request:
Hubs with square socket or plastic-coated handwheels.

Quick Links

Dispatch by 30/07/25

B3: 3

D1: 100

D2: 10H7

D3: 26

DIN: DIN 950

L1: 17

L3: 33

revolving grip DIN 98 Form E: ø16 x M6 x 54.5

T: 11.4

£35.15 ea. Excl VAT £42.18 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£28.82	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

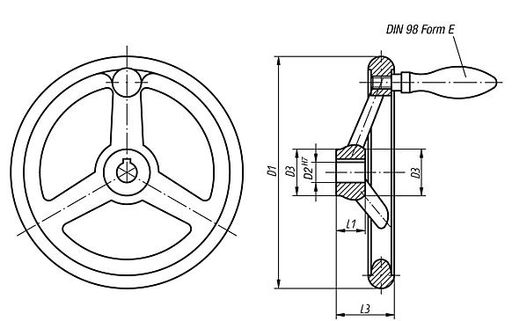

Product Dimensions

B3	3
D1	100
D2	10H7
D3	26
DIN	DIN 950
L1	17
L3	33
revolving grip DIN 98 Form E	ø16 x M6 x 54.5
T	11.4

Downloads

STP

Handwheel. 10mm H7 Reamed Hole. 100mm Overall Diameter. With Keyway. Revolving Handle. Cast Iron.

Handwheel. 10mm H7 Reamed Hole. 100mm Overall Diameter. With Keyway. Revolving Handle. Cast Iron.
