Cast Iron With Keyway Revolving Handle

Cast Iron With Keyway Revolving Handle

Handwheel. 16mm H7 Reamed Hole. 180mm Overall Diameter. With Keyway. Revolving Handle. Cast Iron.

Cast Iron With Keyway Revolving Handle

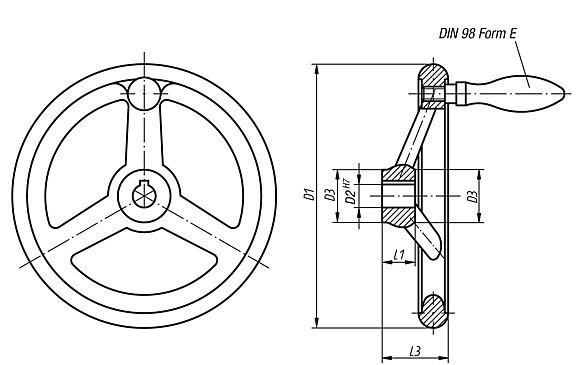

Line drawing placeholder

Move drawing here

B3 D1 D2 D3 DIN L1 L3 revolving grip DIN 98 Form E T Price (Exc. Tax) Stock Qty basket

Filters
K0671.5080X10
View product 		3 80 10H7 24 DIN 950 16 29 ø16 x M6 x 54.5 11.4
£32.52
0
K0671.5080X12
View product 		4 80 12H7 24 DIN 950 16 29 ø16 x M6 x 54.5 13.8
£32.52
0
K0671.5100X10
View product 		3 100 10H7 26 DIN 950 17 33 ø16 x M6 x 54.5 11.4
£36.15
0
K0671.5100X12
View product 		4 100 12H7 26 DIN 950 17 33 ø16 x M6 x 54.5 13.8
£36.15
0
K0671.5125X12
View product 		4 125 12H7 28 DIN 950 18 36 ø20 x M8 x 67 13.8
£41.95
0
K0671.5125X14
View product 		5 125 14H7 28 DIN 950 18 36 ø20 x M8 x 67 16.3
£41.95
0
K0671.5140X14
View product 		5 140 14H7 30 DIN 950 19 39 ø20 x M8 x 67 16.3
£46.03
0
K0671.5140X16
View product 		5 140 16H7 30 DIN 950 19 39 ø20 x M8 x 67 18.3
£46.03
0
K0671.5160X14
View product 		5 160 14H7 32 DIN 950 20 40 ø25 x M10 x 83 16.3
£53.09
0
K0671.5160X16
View product 		5 160 16H7 32 DIN 950 20 40 ø25 x M10 x 83 18.3
£53.09
0
K0671.5180X16
View product 		5 180 16H7 36 DIN 950 22 43 ø25 x M10 x 83 18.3
£66.12
0
K0671.5180X18
View product 		6 180 18H7 36 DIN 950 22 43 ø25 x M10 x 83 20.8
£66.12
0
K0671.5200X18
View product 		6 200 18H7 38 DIN 950 24 45 ø25 x M10 x 83 20.8
£70.18
0
K0671.5200X22
View product 		6 200 22H7 38 DIN 950 24 45 ø25 x M10 x 83 24.8
£70.18
0
K0671.5250X22
View product 		6 250 22H7 45 DIN 950 28 50 ø32 x M12 x 105.5 24.8
£108.28
0
K0671.5250X26
View product 		8 250 26H7 45 DIN 950 28 50 ø32 x M12 x 105.5 29.3
£108.28
0
K0671.5315X26
View product 		8 315 26H7 53 DIN 950 33 56 ø32 x M12 x 105.5 29.3
£149.76
0
K0671.5315X30
View product 		8 315 30H7 53 DIN 950 33 56 ø32 x M12 x 105.5 33.3
£149.76
0
K0671.5400X30
View product 		8 400 30H7 65 DIN 950 38 63 ø36 x M16 x 117 33.3
£252.50
0
K0671.5400X34
View product 		10 400 34H7 65 DIN 950 38 63 ø36 x M16 x 117 37.3
£252.50
0
K0671.5500X34
View product 		10 500 34H7 78 DIN 950 45 72 ø36 x M16 x 117 37.3
£477.19
0
K0671.5500X40
View product 		12 500 40H7 78 DIN 950 45 72 ø36 x M16 x 117 43.3
£477.19
0
