K0984 - Hinges Weldable
Back to Weldable Hinges Form A
Weldable Hinge. Steel. 15.5x80mm. 13mm Diameter. Steel Componant.

Item Code: K0984.013080012

Weldable Hinge. Steel. 15.5x80mm. 13mm Diameter. Steel Componant.

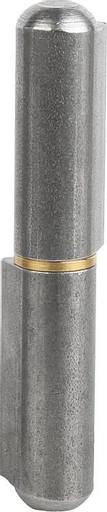

Weldable-Hinges-Form-A_1200x1200.jpg?

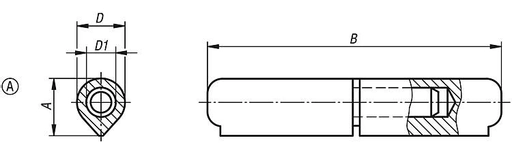

Weldable-Hinges-Form-A-drawing_1200x1200.jpg?

Item Code: K0984.013080012

Weldable Hinge. Steel. 15.5x80mm. 13mm Diameter. Steel Componant.

Material:
Hinge steel.
Spacer washer brass.
Hinge pin steel or brass.
Version:
Steel parts bright.
Note:
The hinges are made of weldable profile steel.
The pin is fixed into the lower part of the hinge.
The differing steel qualities of the weld and the beam onto which the hinge is welded must be at least equal to or better than:
S235 JR+AR acc. to EN 10025-2:2004-10
DIN 8563 part 3 or Fe E 235 acc. to SIA 161

Quick Links

Dispatch by 10/06/25

Form: A

D: 13

L: 80

D1: 8

A: 15,5

B: 80

£2.64 ea. Excl VAT £3.17 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.48	6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Hinge steel.
Spacer washer brass.
Hinge pin steel or brass.
Version:
Steel parts bright.
Note:
The hinges are made of weldable profile steel.
The pin is fixed into the lower part of the hinge.
The differing steel qualities of the weld and the beam onto which the hinge is welded must be at least equal to or better than:
S235 JR+AR acc. to EN 10025-2:2004-10
DIN 8563 part 3 or Fe E 235 acc. to SIA 161

Product Dimensions

Form	A
D	13
L	80
D1	8
A	15,5
B	80
