Vertical Toggle Clamp With Safety Lock. Overall Height 231mm. Overall Length 153mm. Holding Force 220daN. Steel.

Item Code: K0662.010103

Vertical Toggle Clamp With Safety Lock. Overall Height 231mm. Overall Length 153mm. Holding Force 220daN. Steel.

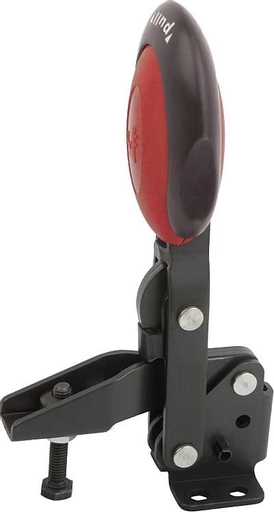

Vertical-Toggle-clamp-WIth-Lock_1200x1200.jpg?

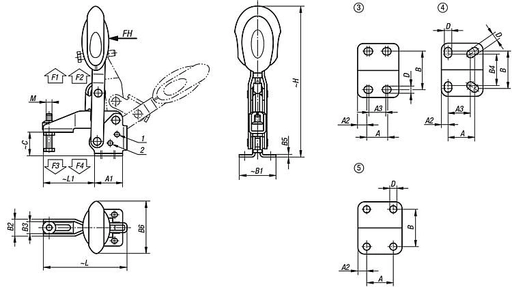

Vertical-Toggle-clamp-WIth-Lock-Drawing_1200x1200.jpg?

Item Code: K0662.010103

Vertical Toggle Clamp With Safety Lock. Overall Height 231mm. Overall Length 153mm. Holding Force 220daN. Steel.

K0662.010103 Vertical Toggle Clamp With Flat Base, Slotted Arm, and Safety Lock. Size 220daN

Holding Force: 220daN
Arm Opens: 97°
Handle Opens: 59°
Weight: 0.875Kg
Spindle Size: M10x55mm

What's In The Bag
K0662.010103 Toggle Clamp
M10x55 Spindle with nuts

Material
Clamp: Steel
Handle: Polyamide
Spindle: Steel.

Quick Links

1 in stock

Arm Type: Adjustable

Base Type: Flat

Holding Force: 201-300Kg

Height: 201-250mm

Total Length: 151-200mm

Underarm Height: 31-40mm

Arm Length: 76-100mm

Spindle Size: M10

Safety Lock: Yes

£66.69 ea. Excl VAT £80.03 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£58.69	12%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Part No	K0662.010103
Main material	steel
Item	Toggle Clamp
Version 1	with safety lock
A	32
B	45
D	9
H	230,5
C	38,7
Version 2	horizontal foot
B1	64
Component material	polyamide
Surface finish body	nitrocarburized and oxidized
A1	50
B2	25,5
B3	18,5
B4	38
B5	3,5
A2	8
Component colour	red RAL 3020
A3	27
B6	56,5
Part Number	K0662.010103
Grip type toggle clamp	vertical

Specifications

Arm Type	Adjustable
Base Type	Flat
Holding Force	201-300Kg
Height	201-250mm
Total Length	151-200mm
Underarm Height	31-40mm
Arm Length	76-100mm
Spindle Size	M10
Safety Lock	Yes

Downloads

Download STP

Vertical Toggle Clamp With Safety Lock. Overall Height 231mm. Overall Length 153mm. Holding Force 220daN. Steel.

Vertical Toggle Clamp With Safety Lock. Overall Height 231mm. Overall Length 153mm. Holding Force 220daN. Steel.
