Item Code: K0662.108103

Vertical Toggle Clamp With Safety Lock. Overall Height 192mm. Overall Length 107mm. Holding Force 200daN. Stainless Steel.

Item Code: K0662.108103

Vertical Toggle Clamp With Safety Lock. Overall Height 192mm. Overall Length 107mm. Holding Force 200daN. Stainless Steel.

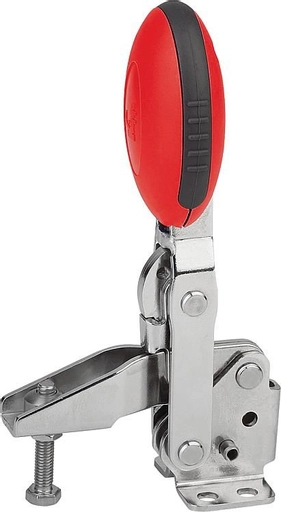

K0662.108103 Vertical Toggle Clamp In Stainless Steel With Flat Base, Slotted Arm, and Safety Lock. Size 200daN

Holding Force: 200daN
Arm Opens: 93°
Handle Opens: 61°
Weight: 0.431Kg
Spindle Size: M8x45mm

What's In The Bag
K0662.008103 Toggle Clamp
M8x45 Spindle with nuts

Material
Clamp: Stainless Steel
Handle: Polyamide
Spindle: Stainless Steel.

Quick Links

1 in stock

51-75mm
Adjustable
Flat
151-200mm
101-200kg
Yes
M8
Yes
101-150mm
31-40mm

£97.42  ea. Excl VAT £116.90  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
5 + £85.73 12%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links

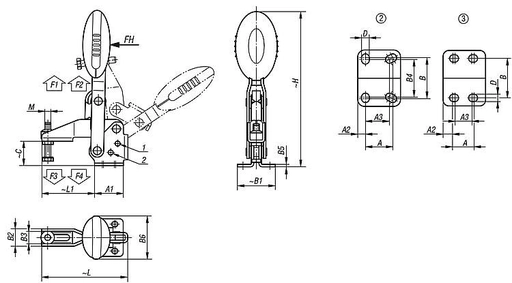

Part NoK0662.108103
Main materialstainless steel
ItemToggle Clamp
Version 1with safety lock
A21
B32
D6,8
H191,4
C32,7
Version 2horizontal foot
B145
Component materialpolyamide
Surface finish bodybright
A139
B220,6
B315,6
B52,5
A29
Component colourred RAL 3020
A319
B651,1
Part NumberK0662.108103
Retaining force F1 N2000
Grip type toggle clampvertical
Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height151-200mm
Holding Force101-200kg
Safety LockYes
Spindle SizeM8
Stainless SteelYes
Total Length101-150mm
Underarm Height31-40mm
Download STP
