Vertical Toggle Clamp With Safety Lock. Overall Height 176mm. Overall Length 87mm. Holding Force 130daN. Steel.

Item Code: K0663.006103

Vertical Toggle Clamp With Safety Lock. Overall Height 176mm. Overall Length 87mm. Holding Force 130daN. Steel.

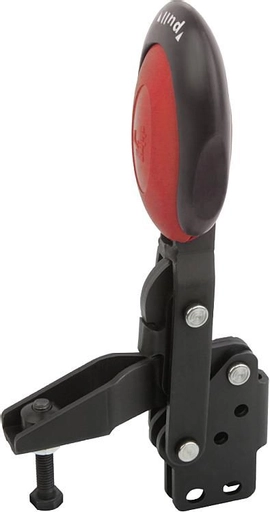

Vertical-Toggle-clamp-WIth-Lock_1200x1200.jpg?

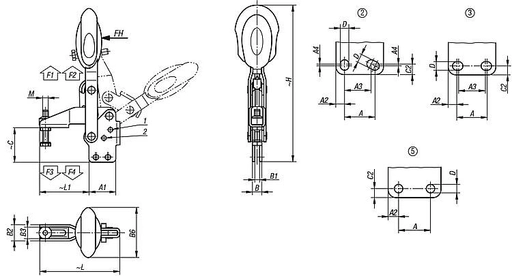

Vertical-Toggle-clamp-WIth-Lock-Drawing_1200x1200.jpg?

Item Code: K0663.006103

Vertical Toggle Clamp With Safety Lock. Overall Height 176mm. Overall Length 87mm. Holding Force 130daN. Steel.

K0663.006103 Vertical Toggle Clamp With Flat Base, Slotted Arm, and Safety Lock. Size 130daN

Holding Force: 130daN
Arm Opens: 83°
Handle Opens: 56°
Weight: 0.331Kg
Spindle Size: M6x35mm

What's In The Bag
K0663.006103 Toggle Clamp
M6x35 Spindle with nuts

Material
Clamp: Steel
Handle: Polyamide
Spindle: Steel.

Quick Links

2 in stock

Arm Length: 51-75mm

Base Type: Straight

Height: 151-200mm

Holding Force: 101-200kg

Safety Lock: Yes

Spindle Size: M6

Total Length: 51-100mm

Underarm Height: 31-40mm

£43.46 ea. Excl VAT £52.15 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£37.38	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Part No	K0663.006103
Main material	steel
Item	Toggle Clamp
Version 1	with safety lock
A	14
B	10,2
D	5,5
H	175,7
C	37,6
Version 2	vertical foot
B1	5,2
Component material	polyamide
Surface finish body	nitrocarburized and oxidized
A1	29
B2	17,5
B3	12,5
A2	7
Component colour	red RAL 3020
A3	12
B6	53,4
Part Number	K0663.006103
Retaining force F1 N	1350
Grip type toggle clamp	vertical
C2	5,5

Specifications

Arm Length	51-75mm
Base Type	Straight
Height	151-200mm
Holding Force	101-200kg
Safety Lock	Yes
Spindle Size	M6
Total Length	51-100mm
Underarm Height	31-40mm

Downloads

Download STP
