Item Code: K0663.106103

Vertical Toggle Clamp With Safety Lock. Overall Height 176mm. Overall Length 87mm. Holding Force 130daN. Stainless Steel.

Item Code: K0663.106103

Vertical Toggle Clamp With Safety Lock. Overall Height 176mm. Overall Length 87mm. Holding Force 130daN. Stainless Steel.

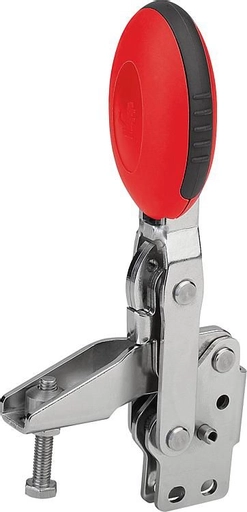

K0663.106103 Vertical Toggle Clamp In Stainless Steel With Flat Base, Slotted Arm, and Safety Lock. Size 130daN

Holding Force: 130daN
Arm Opens: 83°
Handle Opens: 56°
Weight: 0.325Kg
Spindle Size: M6x35mm

What's In The Bag
K0663.106103 Toggle Clamp
M6x35 Spindle with nuts

Material
Clamp: Stainless Steel
Handle: Polyamide
Spindle: Stainless Steel.

Quick Links

2 in stock

51-75mm
Straight
151-200mm
101-200kg
Yes
M6
Yes
51-100mm
31-40mm

£81.56  ea. Excl VAT £97.87  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
5 + £71.77 12%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links

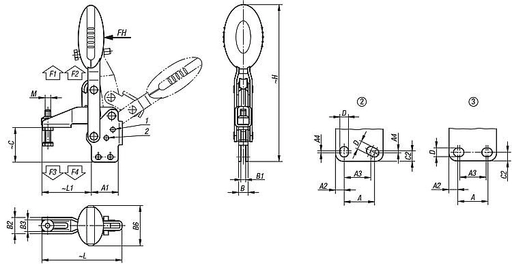

Part NoK0663.106103
Main materialstainless steel
ItemToggle Clamp
Version 1with safety lock
A14
B10,2
D5,5
H175,7
C37,6
Version 2vertical foot
B15,2
Component materialpolyamide
Surface finish bodybright
A129
B217,5
B312,5
A27
Component colourred RAL 3020
A312
B653,4
Part NumberK0663.106103
Retaining force F1 N1350
Grip type toggle clampvertical
C25,5
Arm Length51-75mm
Base TypeStraight
Height151-200mm
Holding Force101-200kg
Safety LockYes
Spindle SizeM6
Stainless SteelYes
Total Length51-100mm
Underarm Height31-40mm
Download STP
