Item Code: GH-12130-R

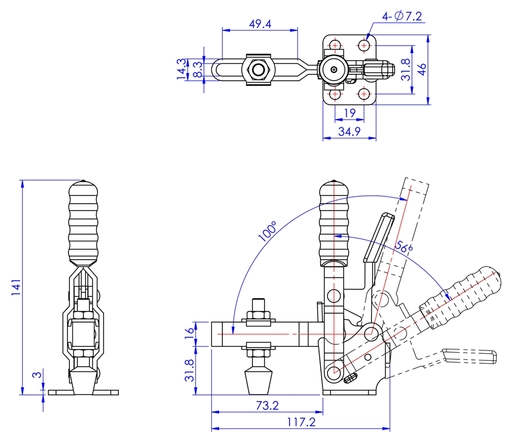

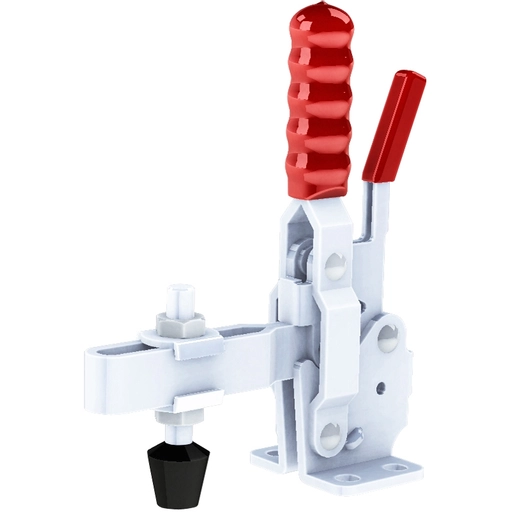

Vertical Toggle Clamp With Safety Lock. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

Vertical Toggle Clamp With Safety Lock. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

Item Code: GH-12130-R

Vertical Toggle Clamp With Safety Lock. Overall Height 141mm. Overall Length 118mm. Holding Force 227daN.

GH-12130-R Vertical Toggle Clamp With Safety Lock Flat Base Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 100°
Handle Opens: 60°
Weight: 0.36Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516
Safety Lock

What's In The Bag
GH-12130-R Toggle Clamp
FC-086312 M8x63mm Neoprene Tipped Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
101-150mm
201-300Kg
Yes
M8
101-150mm
31-40mm

£27.34  ea. Excl VAT £32.81  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £25.15 8%
30 - 49 £23.79 13%
50 + £21.87 20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length 51-75mm
Arm Type Adjustable
Base Type Flat
Height 101-150mm
Holding Force 201-300Kg
Safety Lock Yes
Spindle Size M8
Total Length 101-150mm
Underarm Height 31-40mm
Download STP
GH-12130-R Datasheet
