Item Code: GH-11002-B

Vertical Toggle Clamp. Overall Height 97mm. Overall Length 67mm. Holding Force 100daN.

Item Code: GH-11002-B

Vertical Toggle Clamp. Overall Height 97mm. Overall Length 67mm. Holding Force 100daN.

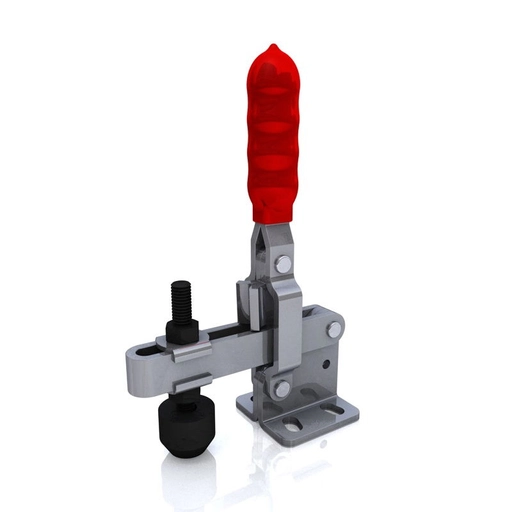

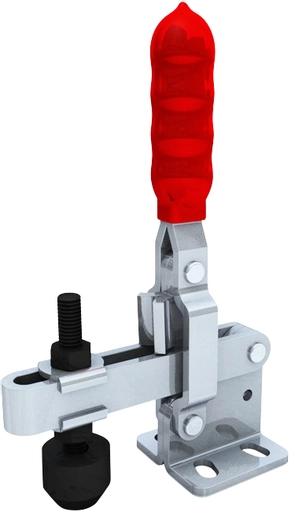

GH-11002-B Vertical Toggle Clamp Flat Base Slotted Arm Size 100daN

Holding Force: 75daN
Arm Opens: 96°
Handle Opens: 66°
Weight: 0.08Kg
Spindle Supplied: SA-054008+NC-05 Cap
Flanged Washers Supplied: FW-100

What's In The Bag
GH-11002-B Toggle Clamp
SA-054008 M5x40mm Spindle With Nuts
FW-100 Flanged Washers
NC-05 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
51-100mm
51-100mm
21-30mm
26-50mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£12.83  ea. Excl VAT £15.40  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £11.80 8%
30 - 49 £11.16 13%
50 + £10.65 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height51-100mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM5
Download STP

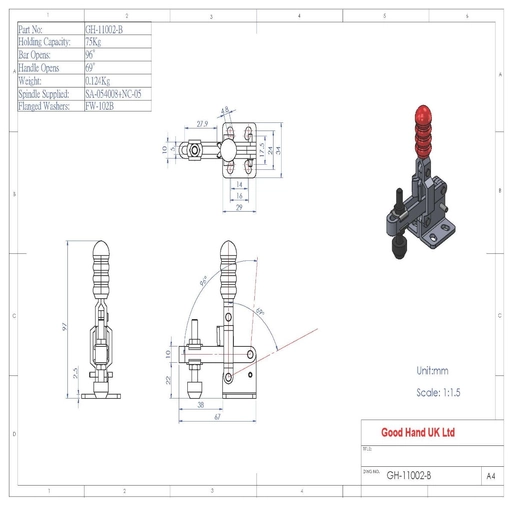

GH-11002-B Datasheet
