Item Code: GH-11002-C

Vertical Toggle Clamp. Overall Height 97mm. Overall Length 66mm. Holding Force 100daN.

Item Code: GH-11002-C

Vertical Toggle Clamp. Overall Height 97mm. Overall Length 66mm. Holding Force 100daN.

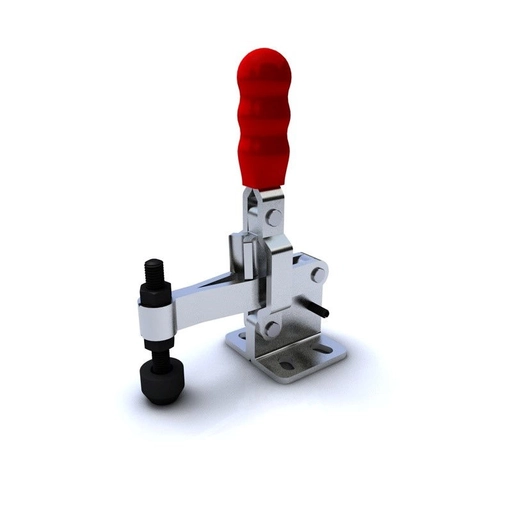

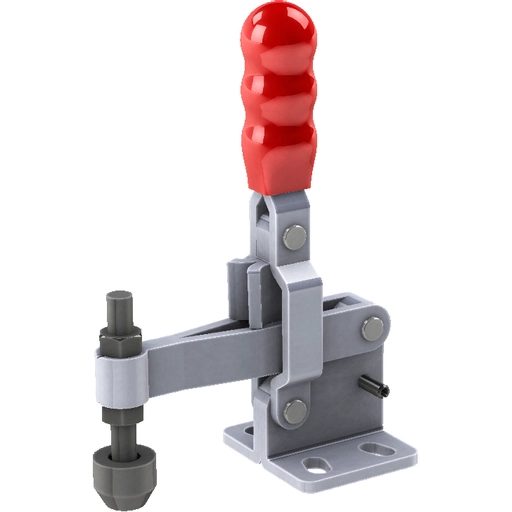

GH-11002-C Vertical Toggle Clamp Flat Base Fixed Arm Size 100daN

Holding Force: 100daN
Arm Opens: 96°
Handle Opens: 69°
Weight: 0.12Kg
Spindle Supplied: SA-053508 Neoprene Cap Supplied: NC-05

What's In The Bag
GH-11002-C Toggle Clamp
SA-053508 M3x35mm Spindle With Nuts
NC-05 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Cap: Neoprene

Quick Links

21 in stock

Fixed
Flat
0-100Kg
51-100mm
51-100mm
21-30mm
51-75mm
M3
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£14.15  ea. Excl VAT £16.98  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £13.02 8%
30 - 49 £12.31 13%
50 + £11.74 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force0-100Kg
Height51-100mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length51-75mm
Spindle SizeM3
Download STP

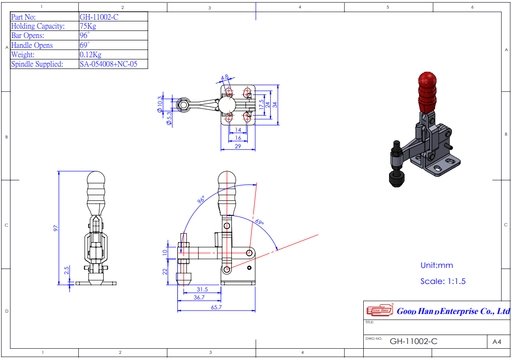

GH-11002-C Datasheet
