Item Code: GH-102-B

Vertical Toggle Clamp. Overall Height 92mm. Overall Length 70mm. Holding Force 100daN.

Vertical Toggle Clamp. Overall Height 92mm. Overall Length 70mm. Holding Force 100daN.

Item Code: GH-102-B

Vertical Toggle Clamp. Overall Height 92mm. Overall Length 70mm. Holding Force 100daN.

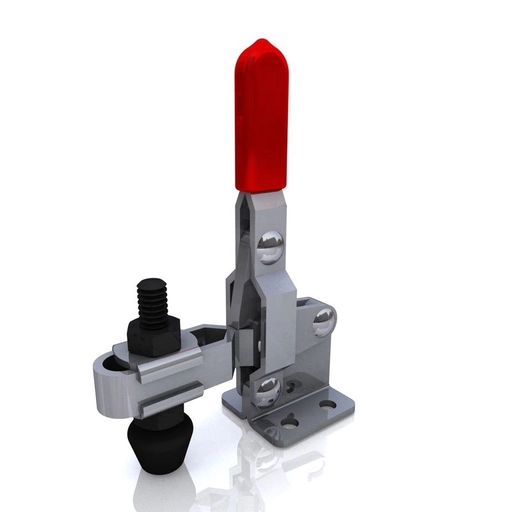

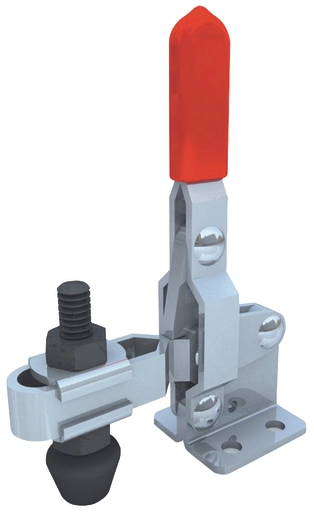

GH-102-B Vertical Toggle Clamp Flat Base Slotted Arm Size 100daN

Holding Force: 100daN
Arm Opens: 90°
Handle Opens: 65°
Weight: 0.115Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-102-B Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

26-50mm
Adjustable
Flat
51-100mm
0-100Kg
M6
51-100mm
0-20mm

£10.97  ea. Excl VAT £13.16  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.09 8%
30 - 49 £9.54 13%
50 + £9.11 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force0-100Kg
Spindle SizeM6
Total Length51-100mm
Underarm Height0-20mm
Download STP

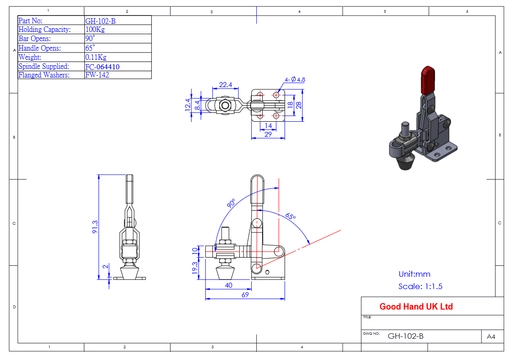

GH-102-B Datasheet
