Item Code: GH-13008

Vertical Toggle Clamp. Overall Height 91mm. Overall Length 132mm. Holding Force 320daN.

Item Code: GH-13008

Vertical Toggle Clamp. Overall Height 91mm. Overall Length 132mm. Holding Force 320daN.

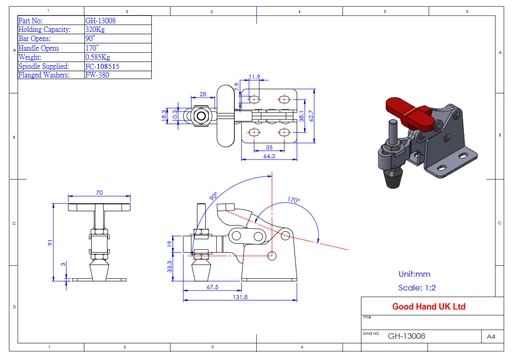

GH-13008 Vertical Clamp with Low Profile, Flat Base and Slotted Arm Size 320daN

Holding Force: 320daN
Arm Opens: 90°
Handle Opens: 170°
Weight: 0.63Kg
Spindle Supplied: FC-108515
Flanged Washers Supplied: FW-380

What's In The Bag
GH-13008 Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

28 in stock

Adjustable
Flat
301-400kg
51-100mm
101-150mm
31-40mm
51-75mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£20.76  ea. Excl VAT £24.91  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £19.10 8%
30 - 49 £18.06 13%
50 + £17.23 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force301-400kg
Height51-100mm
Total Length101-150mm
Underarm Height31-40mm
Arm Length51-75mm
Spindle SizeM10
Download STP
GH-13008 Datasheet
