Item Code: GH-10752-B

Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.

Item Code: GH-10752-B

Vertical Toggle Clamp. Overall Height 88mm. Overall Length 57mm. Holding Force 75daN.

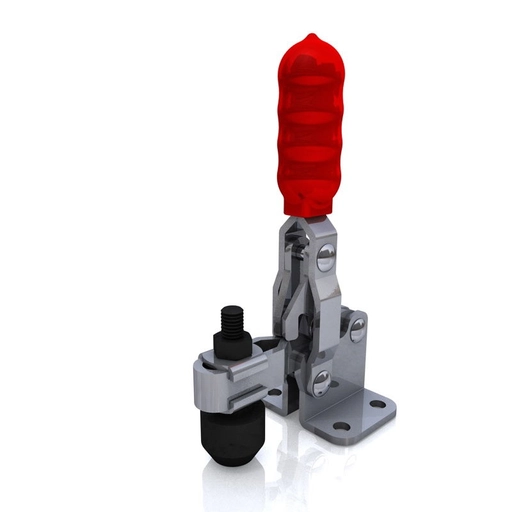

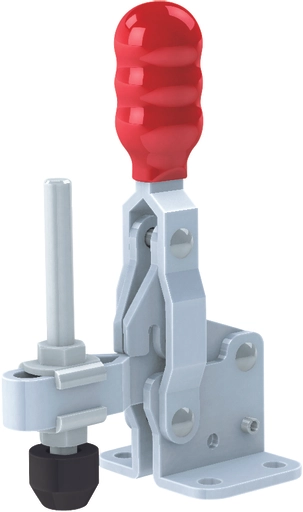

GH-10752-B Vertical Toggle Clamp Flat Base Slotted Arm Size 75daN

Holding Force: 75daN
Arm Opens: 120°
Handle Opens: 85°
Weight: 0.09Kg
Spindle Supplied: SA-054008+NC-05 Cap
Flanged Washers Supplied: FW-100
What's In The Bag
GH-10752-B Toggle Clamp
SA-054008 M5x40mm Spindle With Nuts
NC-05 Neoprene Cap
FW-100 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Cap: Neoprene
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
51-100mm
51-100mm
0-20mm
26-50mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.42  ea. Excl VAT £12.50  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £9.59 8%
30 - 49 £9.07 13%
50 + £8.65 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height51-100mm
Total Length51-100mm
Underarm Height0-20mm
Arm Length26-50mm
Spindle SizeM5
Download STP

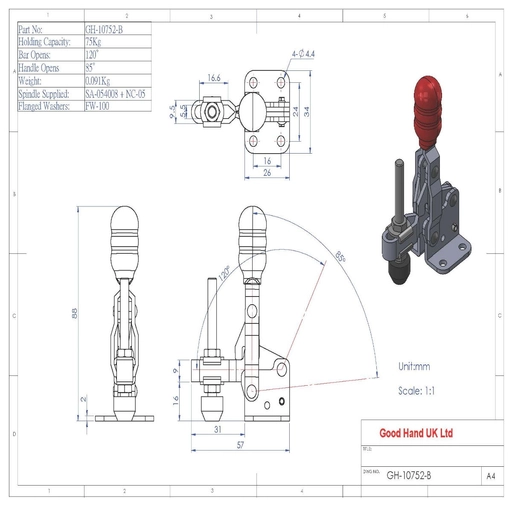

GH-10752-B Datasheet
