Item Code: GH-101-AI

Vertical Toggle Clamp. Overall Height 86mm. Overall Length 50mm. Holding Force 50daN.

Item Code: GH-101-AI

Vertical Toggle Clamp. Overall Height 86mm. Overall Length 50mm. Holding Force 50daN.

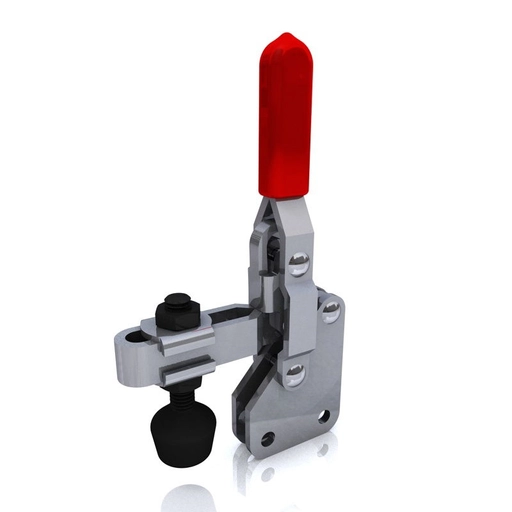

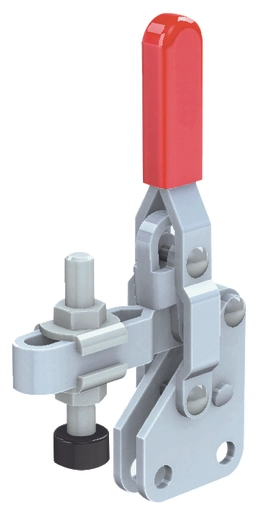

GH-101-AI Vertical Toggle Clamp Straight Base Slotted Arm Size 50daN

Holding Force: 50daN
Arm Opens: 100°
Handle Opens: 56°
Weight: 0.06Kg
Spindle Supplied: FC-053708-LP
Flanged Washers Supplied: FW-100

What's In The Bag
GH-101-AI Toggle Clamp
FC-053708 M5x37mm Neoprene Tipped Spindle With Nuts
FW-100 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Straight
0-100Kg
51-100mm
0-50mm
21-30mm
0-25mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.01  ea. Excl VAT £12.01  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £9.21 8%
30 - 49 £8.71 13%
50 + £8.31 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force0-100Kg
Height51-100mm
Total Length0-50mm
Underarm Height21-30mm
Arm Length0-25mm
Spindle SizeM5
Download STP

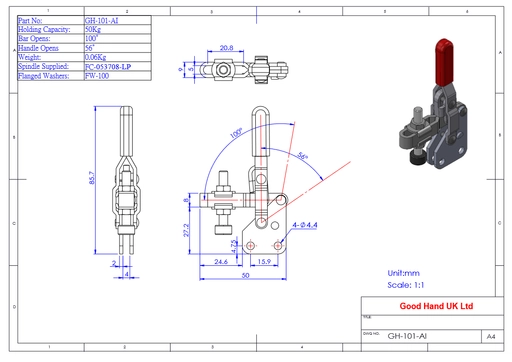

GH-101-AI Datasheet
