Item Code: GH-101-AL

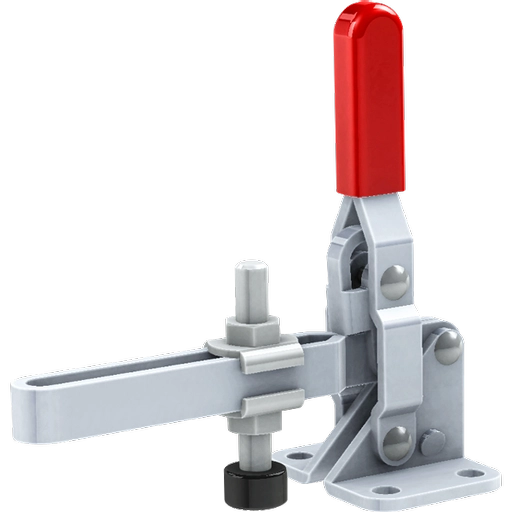

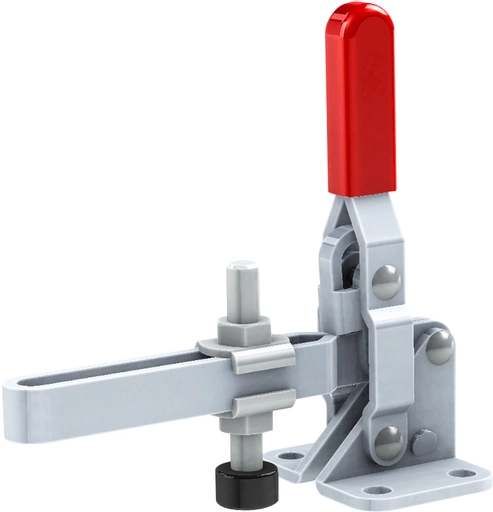

Vertical Toggle Clamp. Overall Height 75mm. Overall Length 78mm. Holding Force 50daN.

Item Code: GH-101-AL

Vertical Toggle Clamp. Overall Height 75mm. Overall Length 78mm. Holding Force 50daN.

GH-101-AL Vertical Toggle Clamp Flat Base Slotted Arm Size 50daN

Holding Force: 50daN
Arm Opens: 100°
Handle Opens: 56°
Weight: 0.07Kg
Spindle Supplied: FC-053708-LP
Flanged Washers Supplied: FW-010

What's In The Bag
GH-101-A Toggle Clamp
FC-053708-LP M5x37mm Neoprene Tipped Spindle With Nuts
FW-010 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
51-100mm
51-100mm
0-20mm
51-75mm
M5

£10.64  ea. Excl VAT £12.77  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Type Adjustable
Base Type Flat
Holding Force 0-100Kg
Height 51-100mm
Total Length 51-100mm
Underarm Height 0-20mm
Arm Length 51-75mm
Spindle Size M5
Download STP

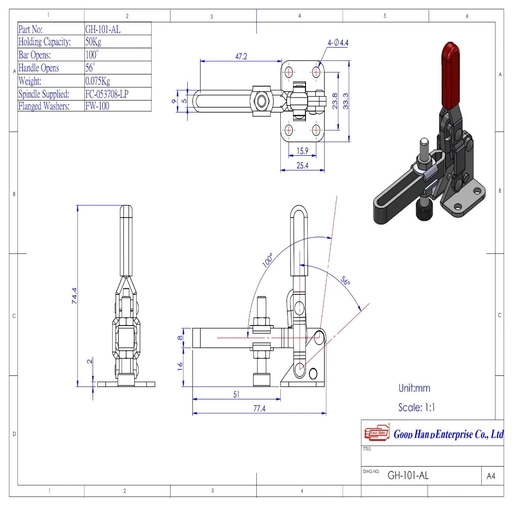

GH-101-AL Datasheet
