Item Code: GH-13009

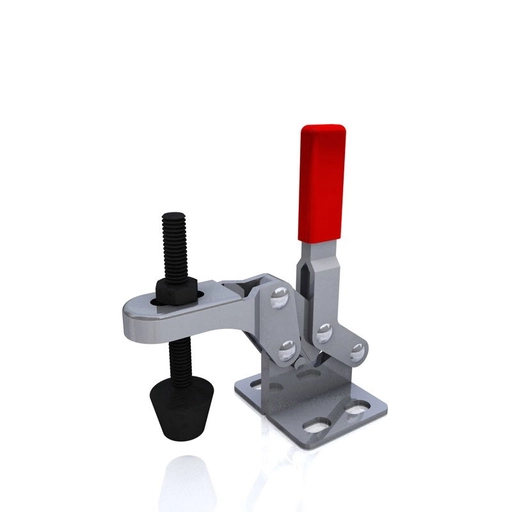

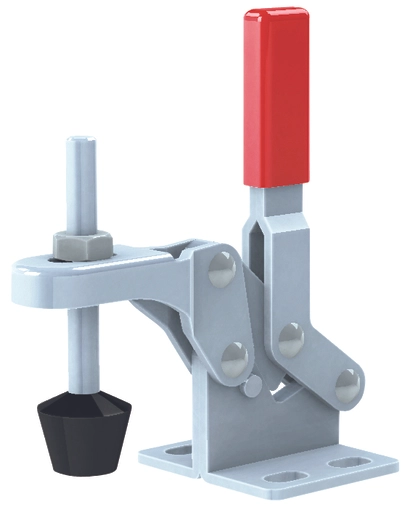

Vertical Toggle Clamp. Overall Height 61mm. Overall Length 57mm. Holding Force 30daN.

Item Code: GH-13009

Vertical Toggle Clamp. Overall Height 61mm. Overall Length 57mm. Holding Force 30daN.

Vertical Toggle Clamp Flat Base Slotted Arm Size 30daN

Holding Force: 30KdaN
Arm Opens: 80°
Handle Opens: 88°
Weight: 0.04Kg
Clamping Distance Under Spindle: 17mm

What's In The Bag
GH-13009 Toggle Clamp
FC-044207 M4x42mm Neoprene Tipped Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
51-100mm
51-100mm
21-30mm
26-50mm
M4
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.58  ea. Excl VAT £12.70  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £9.73 8%
30 - 49 £9.20 13%
50 + £8.78 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height51-100mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM4
Download STP

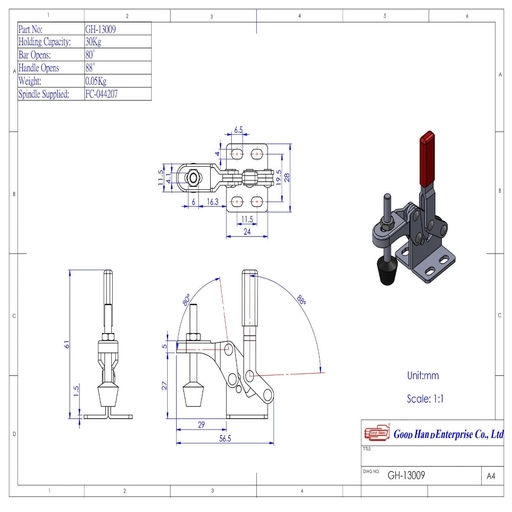

GH-13009 Datasheet
