Item Code: GH-101-AT

Vertical Toggle Clamp. Overall Height 60mm. Overall Length 50mm. Holding Force 50daN.

Item Code: GH-101-AT

Vertical Toggle Clamp. Overall Height 60mm. Overall Length 50mm. Holding Force 50daN.

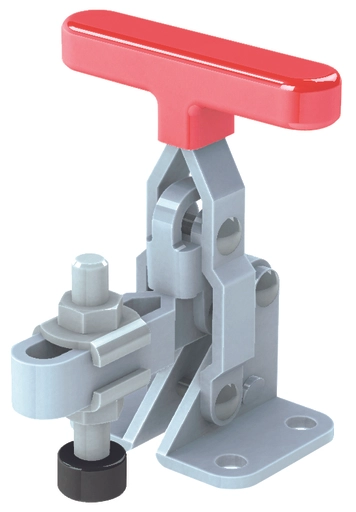

GH-101-AT Vertical Clamp with Low Profile, Flat Base and Slotted Arm Size 50daN

Holding Force: 50daN
Arm Opens: 100°
Handle Opens: 56°
Weight: 0.06Kg
Spindle Supplied: FC-053708-LP
Flanged Washers Supplied: FW-080

What's In The Bag
GH-101-AT Toggle Clamp
FC-053708-LP M5x37mm Neoprene Tipped Spindle With Nuts
FW-080 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

38 in stock

Adjustable
Flat
0-100Kg
51-100mm
0-50mm
0-20mm
0-25mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.09  ea. Excl VAT £12.11  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £9.28 8%
30 - 49 £8.78 13%
50 + £8.37 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height51-100mm
Total Length0-50mm
Underarm Height0-20mm
Arm Length0-25mm
Spindle SizeM5
Download STP

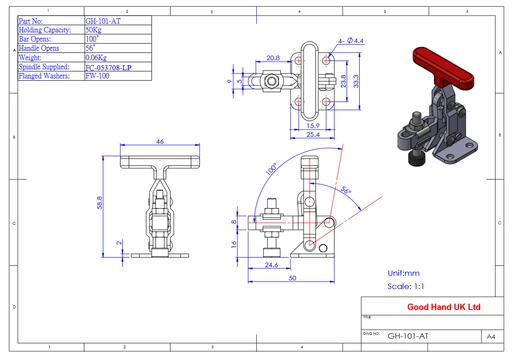

GH-101-AT Datasheet
