Item Code: GH-13005-SM

Vertical Toggle Clamp. Overall Height 51mm. Overall Length 61mm. Holding Force 68daN.

Item Code: GH-13005-SM

Vertical Toggle Clamp. Overall Height 51mm. Overall Length 61mm. Holding Force 68daN.

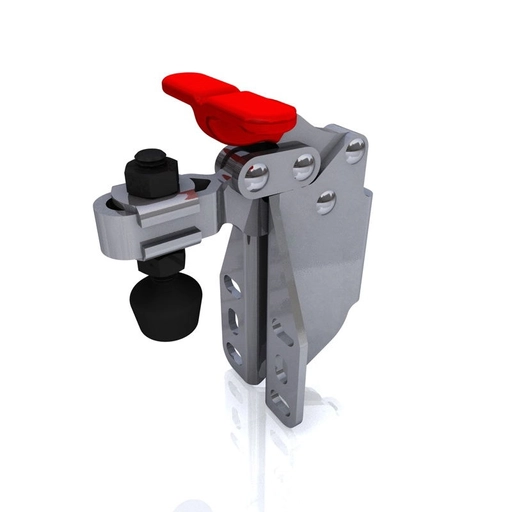

GH-13005-SM Vertical Toggle Clamp with Side Mounting and Slotted Arm Size 68daN

Holding Force: 68daN
Arm Opens: 90°
Handle Opens: 170°
Weight: 0.092Kg
Spindle Supplied: FC-053708-LP
Flanged Washers Supplied: FW-080

What's In The Bag
GH-13005-SM Toggle Clamp
FC-053708-LP M5x37mm Neoprene Tipped Spindle With Nuts
FW-080 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

37 in stock

Adjustable
Side Mounted
0-100Kg
51-100mm
51-100mm
51+mm
26-50mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.95  ea. Excl VAT £13.14  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.07 8%
30 - 49 £9.53 13%
50 + £9.09 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeSide Mounted
Holding Force0-100Kg
Height51-100mm
Total Length51-100mm
Underarm Height51+mm
Arm Length26-50mm
Spindle SizeM5
Download STP

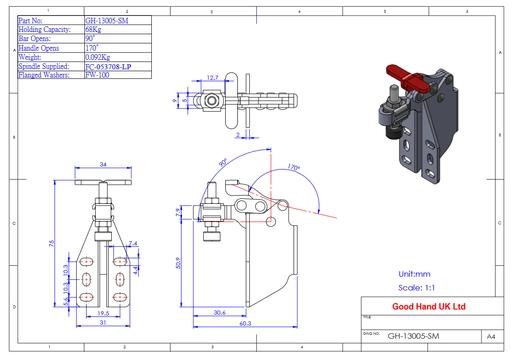

Gh-13005-SM Datasheet
