Item Code: GH-13005-HB

Vertical Toggle Clamp. Overall Height 49mm. Overall Length 57mm. Holding Force 68daN.

Item Code: GH-13005-HB

Vertical Toggle Clamp. Overall Height 49mm. Overall Length 57mm. Holding Force 68daN.

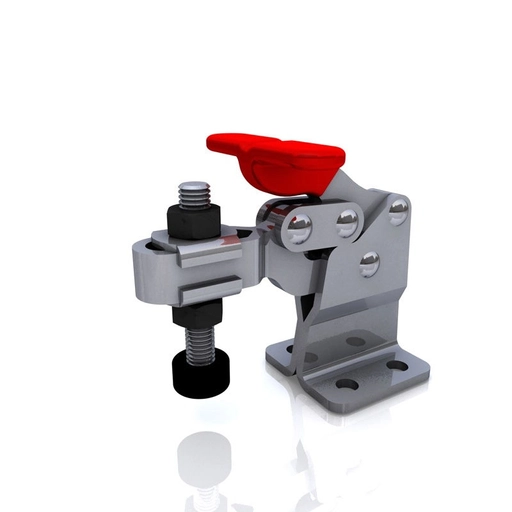

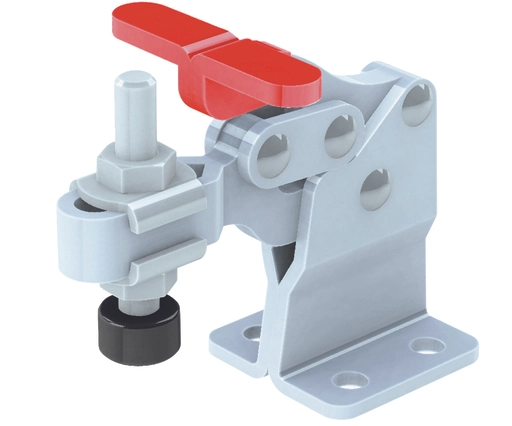

GH-13005-HB Vertical Clamp with Low Profile, High Base and Slotted Arm Size 68daN

Holding Force: 68daN
Arm Opens: 90°
Handle Opens: 170°
Weight: 0.068Kg
Spindle Supplied: FC-053708-LP
Flanged Washers Supplied: FW-080

What's In The Bag
GH-13005-HB Toggle Clamp
FC-053708-LP M5x37mm Neoprene Tipped Spindle With Nuts
FW-080 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
0-50mm
51-100mm
21-30mm
26-50mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.88  ea. Excl VAT £13.06  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.01 8%
30 - 49 £9.47 13%
50 + £9.03 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height0-50mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM5

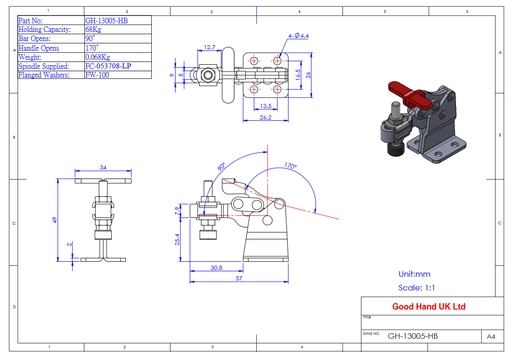

Download STP
GH-13005-HB Datasheet
