Item Code: GH-101-JSI

Vertical Toggle Clamp. Overall Height 340mm. Overall Length 234mm. Holding Force 550daN.

Vertical Toggle Clamp. Overall Height 340mm. Overall Length 234mm. Holding Force 550daN.

Item Code: GH-101-JSI

Vertical Toggle Clamp. Overall Height 340mm. Overall Length 234mm. Holding Force 550daN.

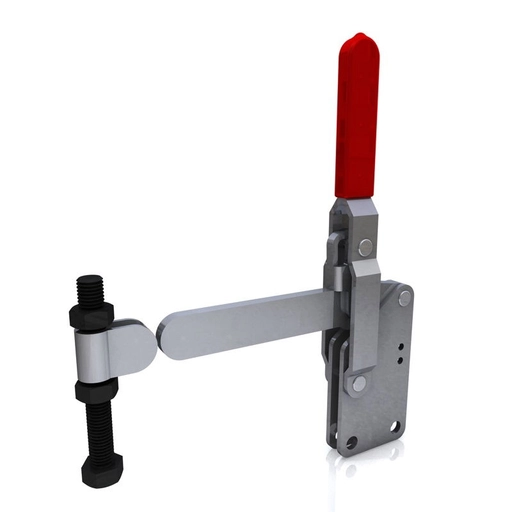

GH-101-JSI Vertical Toggle Clamp Straight Base Solid Arm Size 550daN

Holding Force: 550daN
Arm Opens: 100-140°
Handle Opens: 48-60°
Weight: 2.54Kg
Spindle Supplied: SA-161520
Bolt Retainer Supplied: BR-580

What's In The Bag
GH-101-JSI Toggle Clamp
SA-161520 M16x150mm Spindle With Nuts
BR-580 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

13 in stock

101mm and Over
Solid
Straight
251mm and Over
401kg and Over
M16
201-250mm
51mm and Over

£46.91  ea. Excl VAT £56.29  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £43.16 8%
30 - 49 £40.81 13%
50 + £38.94 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length101mm and Over
Arm TypeSolid
Base TypeStraight
Height251mm and Over
Holding Force401kg and Over
Spindle SizeM16
Total Length201-250mm
Underarm Height51mm and Over
Download STP

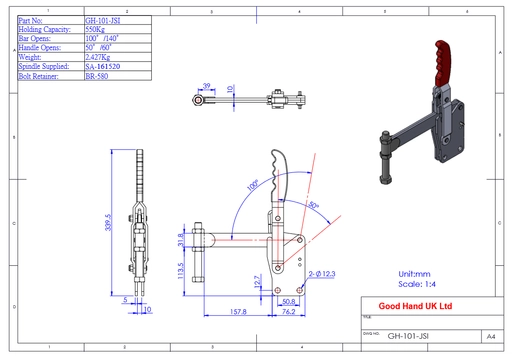

GH-101-JSI Datasheet
