Item Code: GH-101-JSB

Vertical Toggle Clamp. Overall Height 340mm. Overall Length 230mm. Holding Force 550daN.

Item Code: GH-101-JSB

Vertical Toggle Clamp. Overall Height 340mm. Overall Length 230mm. Holding Force 550daN.

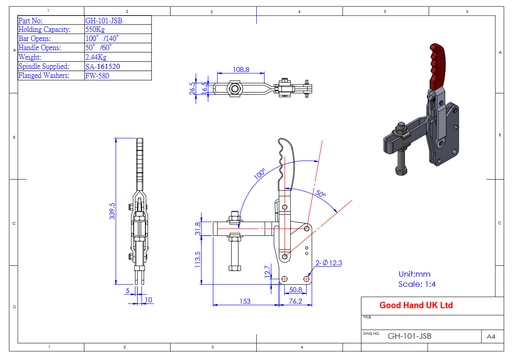

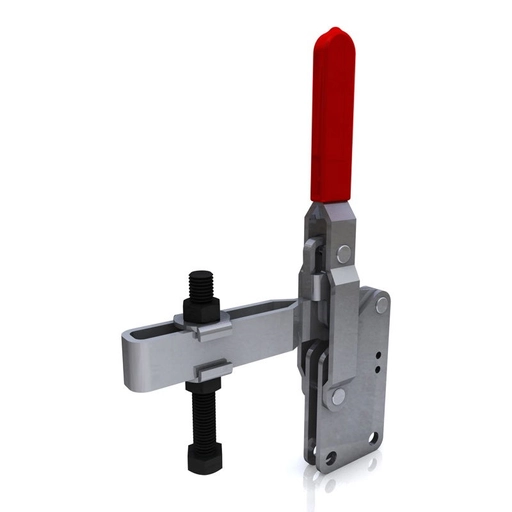

GH-101-JSB Vertical Toggle Clamp Straight Base Slotted Arm Size 550daN

Holding Force: 550daN
Arm Opens: 100-140°
Handle Opens: 48-60°
Weight: 2.54Kg
Spindle Supplied: SA-161520
Flanged Washers Supplied: FW-580

What's In The Bag
GH-101-JSB Toggle Clamp
SA-161520 M16x150mm Spindle With Nuts
FW-580 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

17 in stock

Adjustable
Straight
401+kg
251+mm
201-250mm
51+mm
101+mm
M16
Qty
Qty
Qty
Qty

£44.90  ea. Excl VAT £53.88  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £41.31 8%
30 - 49 £39.06 13%
50 + £37.27 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force401+kg
Height251+mm
Total Length201-250mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM16
Download STP
GH-101-JSB Datasheet
