Item Code: GH-15501-B

Vertical Toggle Clamp. Overall Height 335mm. Overall Length 230mm. Holding Force 550daN.

Item Code: GH-15501-B

Vertical Toggle Clamp. Overall Height 335mm. Overall Length 230mm. Holding Force 550daN.

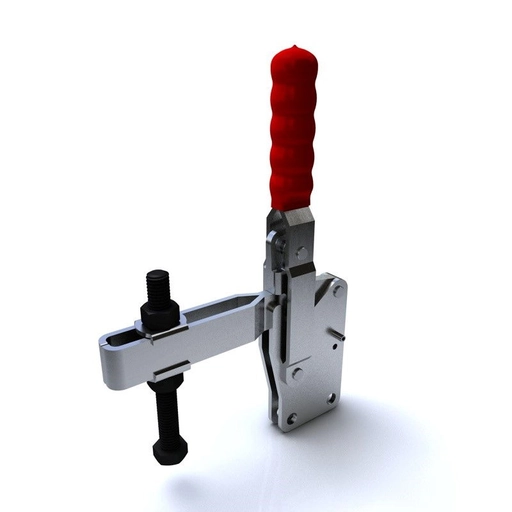

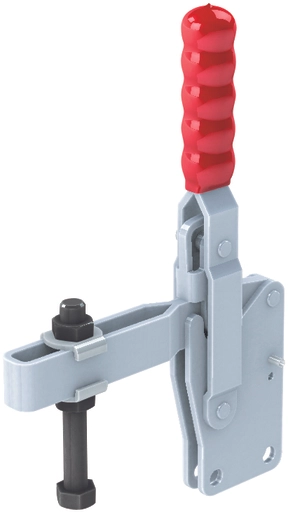

GH-15501-B Vertical Toggle Clamp Straight Base Slotted Arm Size 550daN

Holding Force: 550daN
Arm Opens: 100/140°
Handle Opens: 50/60°
Weight: 2.5Kg
Spindle Supplied: SA-161520
Flanged Washer Supplied: FW-120

What's In The Bag
GH-15501-B Toggle Clamp
SA-161520 M16x150mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

Dispatch by 16/06/25

Adjustable
Straight
401+kg
251+mm
201-250mm
51+mm
101+mm
M16
Qty
Qty
Qty
Qty

£48.42  ea. Excl VAT £58.10  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £44.55 8%
30 - 49 £42.13 13%
50 + £40.19 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force401+kg
Height251+mm
Total Length201-250mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM16
Download STP

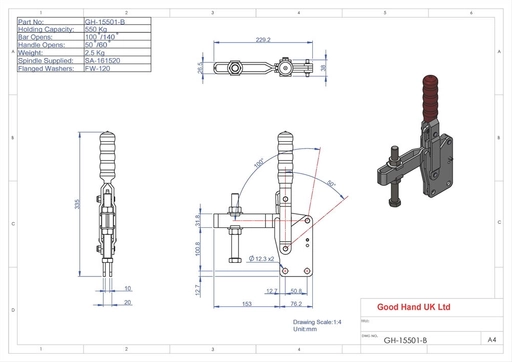

GH-15501-B Datasheet
