Item Code: GH-101-JS

Vertical Toggle Clamp. Overall Height 308mm. Overall Length 234mm. Holding Force 550daN.

Item Code: GH-101-JS

Vertical Toggle Clamp. Overall Height 308mm. Overall Length 234mm. Holding Force 550daN.

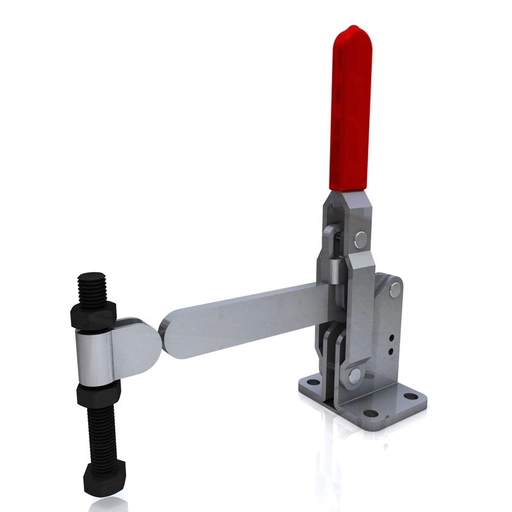

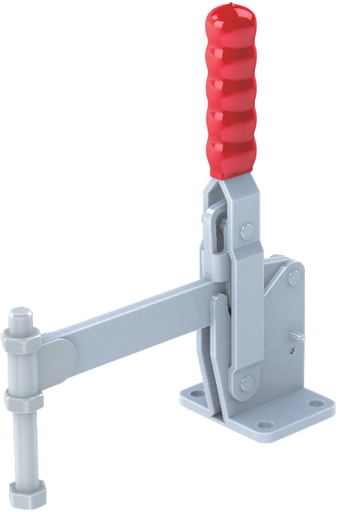

GH-101-JS Vertical Toggle Clamp Flat Base Solid Arm Size 550daN

Holding Force: 550daN
Arm Opens: 100°
Handle Opens: 48°
Weight: 2.54Kg
Spindle Supplied: SA-161520
Bolt Retainer Supplied: BR-580

What's In The Bag
GH-101-JS Toggle Clamp
SA-161520 M16x150mm Spindle With Nuts
BR-580 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

17 in stock

Solid
Flat
401+kg
251+mm
201-250mm
51+mm
101+mm
M16
Qty
Qty
Qty
Qty

£46.33  ea. Excl VAT £55.60  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £42.62 8%
30 - 49 £40.31 13%
50 + £38.45 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty

Quick Links



Arm TypeSolid
Base TypeFlat
Holding Force401+kg
Height251+mm
Total Length201-250mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM16
Download STP

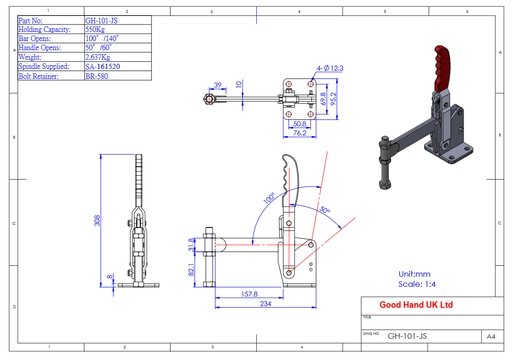

Gh-101-JS Datasheet
