Item Code: GH-15502-A

Vertical Toggle Clamp. Overall Height 303mm. Overall Length 234mm. Holding Force 550daN.

Item Code: GH-15502-A

Vertical Toggle Clamp. Overall Height 303mm. Overall Length 234mm. Holding Force 550daN.

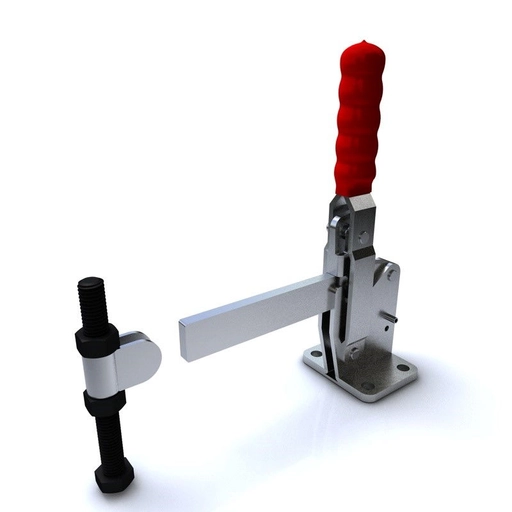

GH-15502-A Vertical Toggle Clamp Flat Base Solid Arm Size 550daN

Holding Force: 550daN
Arm Opens: 100/140°
Handle Opens: 50/60°
Weight: 2.7Kg
Spindle Set Supplied: SA-161520 + BR-580
What's In The Bag
GH-15502-A Toggle Clamp
SA-161520 M16x150mm Spindle With Nuts
BR-580 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

11 in stock

Solid
Flat
401+kg
251+mm
201-250mm
51+mm
101+mm
M16
Qty
Qty
Qty

£47.49  ea. Excl VAT £56.99  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £43.69 8%
30 - 49 £41.32 13%
50 + £39.42 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Arm TypeSolid
Base TypeFlat
Holding Force401+kg
Height251+mm
Total Length201-250mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM16
Download STP

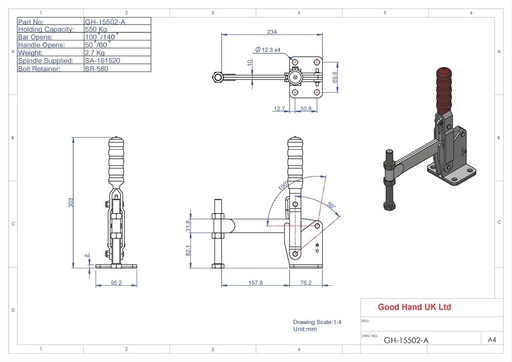

GH-15502-A Datasheet
