Item Code: GH-15502-C

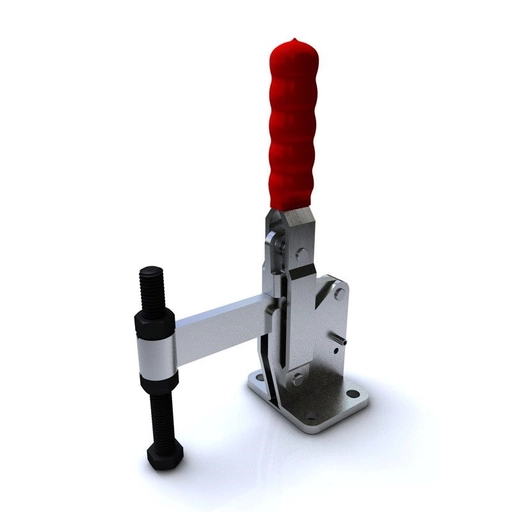

Vertical Toggle Clamp. Overall Height 303mm. Overall Length 184mm. Holding Force 550daN.

Vertical Toggle Clamp. Overall Height 303mm. Overall Length 184mm. Holding Force 550daN.

Item Code: GH-15502-C

Vertical Toggle Clamp. Overall Height 303mm. Overall Length 184mm. Holding Force 550daN.

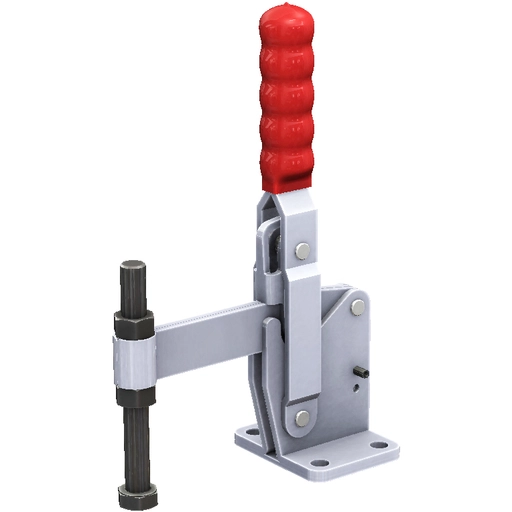

GH-15502-C Vertical Toggle Clamp Flat Base Fixed Arm Size 550daN

Holding Force: 550daN
Arm Opens: 100/140°
Handle Opens: 50/60°
Weight: 2.5Kg
Spindle Set Supplied: SA-161520

What's In The Bag
GH-15502-C Toggle Clamp
SA-161520 M16x150mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

30 in stock

101mm and Over
Fixed
Flat
251mm and Over
401kg and Over
M16
151-200mm
51mm and Over

£48.34  ea. Excl VAT £58.01  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £44.47 8%
30 - 49 £42.06 13%
50 + £40.12 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length101mm and Over
Arm TypeFixed
Base TypeFlat
Height251mm and Over
Holding Force401kg and Over
Spindle SizeM16
Total Length151-200mm
Underarm Height51mm and Over
Download STP

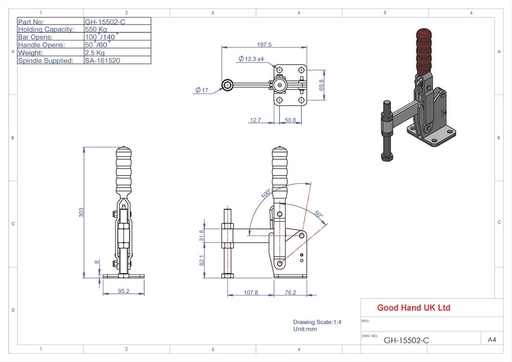

GH-15502-C Datasheet
