Item Code: GH-14501-B

Vertical Toggle Clamp. Overall Height 245mm. Overall Length 177mm. Holding Force 350daN.

Item Code: GH-14501-B

Vertical Toggle Clamp. Overall Height 245mm. Overall Length 177mm. Holding Force 350daN.

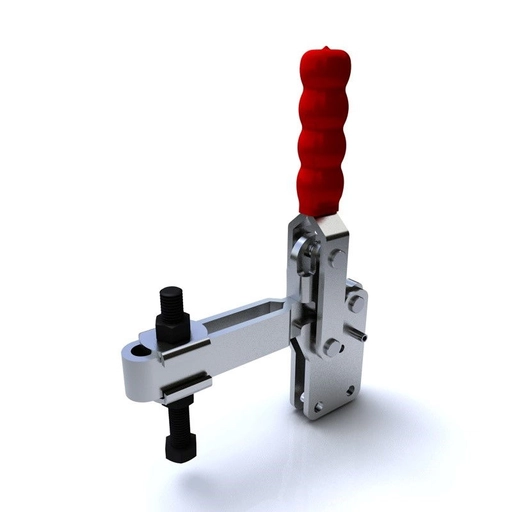

GH-14501-B Vertical Toggle Clamp Straight Base Slotted Arm Size 450daN

Holding Force: 450daN
Arm Opens: 90/125°
Handle Opens: 70/85°
Weight: 1.3Kg
Spindle Supplied: SA-121017
Flanged Washer Supplied: FW120

What's In The Bag
GH-14501-B Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

26 in stock

Adjustable
Straight
401+kg
201-250mm
151-200mm
51+mm
101+mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£37.99  ea. Excl VAT £45.59  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £34.95 8%
30 - 49 £33.05 13%
50 + £31.53 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeStraight
Holding Force401+kg
Height201-250mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM12
Download STP

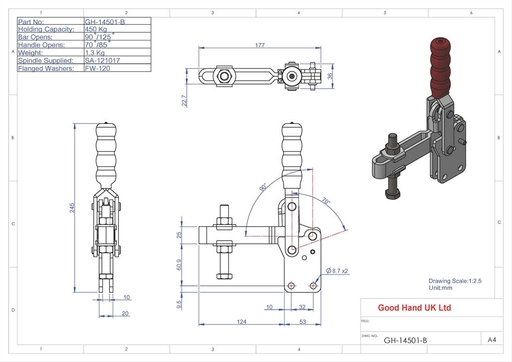

GH-14501-B Datasheet
