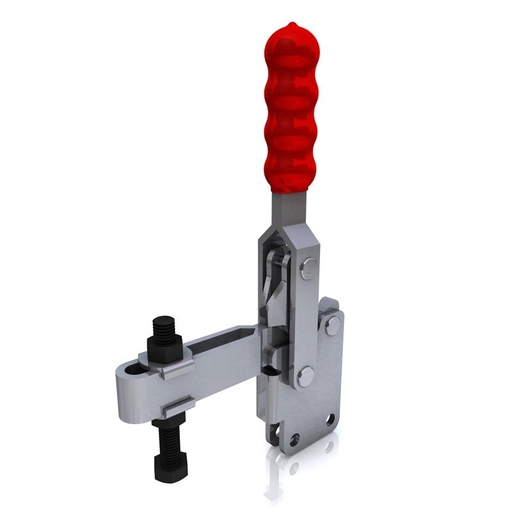

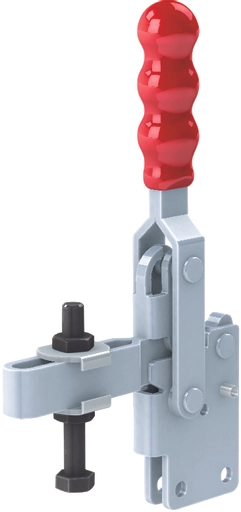

Vertical Toggle Clamp. Overall Height 243mm. Overall Length 143mm. Holding Force 350daN.

Item Code: GH-13501-B

Vertical Toggle Clamp. Overall Height 243mm. Overall Length 143mm. Holding Force 350daN.

GH-13501-B-Straight-Base-Vertical-Toggle-Clamp_1200x1200.jpg?

Item Code: GH-13501-B

Vertical Toggle Clamp. Overall Height 243mm. Overall Length 143mm. Holding Force 350daN.

GH-13501-B Vertical Toggle Clamp Straight Base Slotted Arm Size 350daN

Holding Force: 350daN
Arm Opens: 90-180°
Handle Opens: 70-100°
Weight: 0.8Kg
Spindle Supplied: SA-108015
Flanged Washers Supplied: FW-380

What's In The Bag
GH-13501-B Toggle Clamp
SA-108015 M10x80mm Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

Dispatch by 16/06/25

£24.73 ea. Excl VAT £29.68 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£22.75	8%
30 - 49	£21.52	13%
50 +	£20.53	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

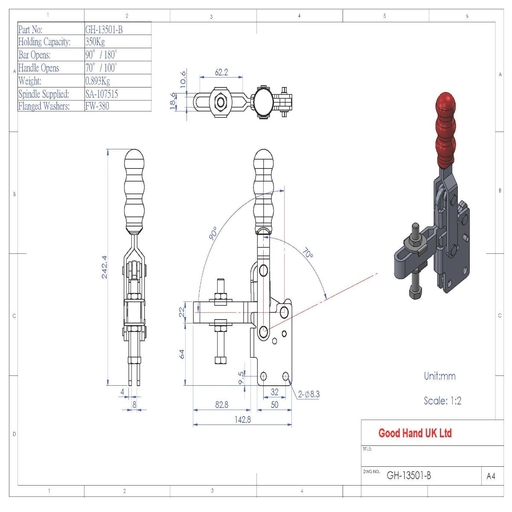

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Straight
Holding Force	301-400kg
Height	201-250mm
Total Length	101-150mm
Underarm Height	51+mm
Arm Length	76-100mm
Spindle Size	M10

Downloads

Download STP

GH-13501-B Datasheet

Vertical Toggle Clamp. Overall Height 243mm. Overall Length 143mm. Holding Force 350daN.

Vertical Toggle Clamp. Overall Height 243mm. Overall Length 143mm. Holding Force 350daN.
