Item Code: GH-10250

Vertical Toggle Clamp. Overall Height 242mm. Overall Length 179mm. Holding Force 450daN.

Item Code: GH-10250

Vertical Toggle Clamp. Overall Height 242mm. Overall Length 179mm. Holding Force 450daN.

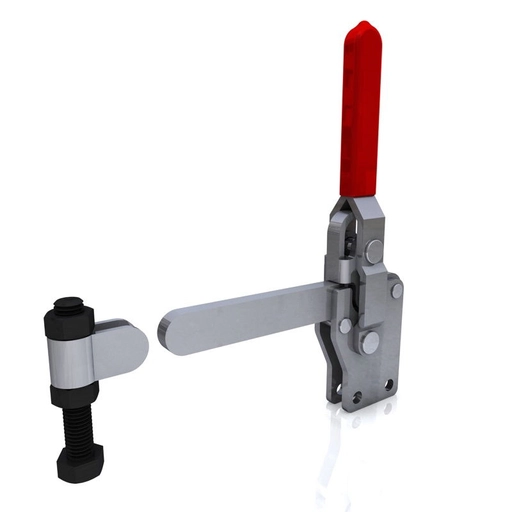

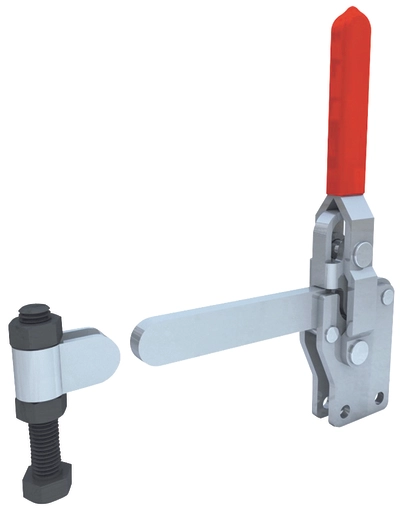

GH-10250 Vertical Toggle Clamp Straight Base Solid Arm Size 450daN

Holding Force: 450daN
Arm Opens: 100-135°
Handle Opens: 58-70°
Weight: 1.25Kg
Spindle Supplied: SA-121017
Bolt Retainer Supplied: BR-120

What's In The Bag
GH-10250 Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
BR-120 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

16 in stock

Solid
Straight
401+kg
201-250mm
151-200mm
51+mm
101+mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£35.03  ea. Excl VAT £42.04  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £32.23 8%
30 - 49 £30.48 13%
50 + £29.07 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeSolid
Base TypeStraight
Holding Force401+kg
Height201-250mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM12
Download STP

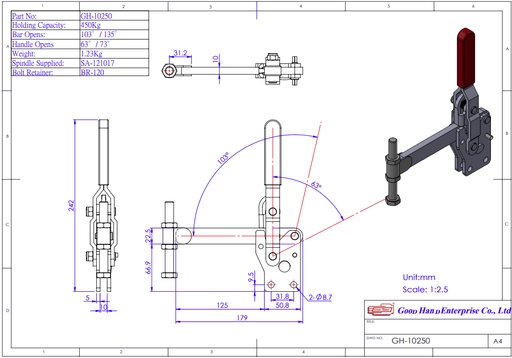

GH-10250 Datasheet
