Vertical Toggle Clamp. Overall Height 240mm. Overall Length 143mm. Holding Force 300daN.

Item Code: GH-13003-A

Vertical Toggle Clamp. Overall Height 240mm. Overall Length 143mm. Holding Force 300daN.

GH-13003-A-300Kg-side-mounting-vertical-toggle-clamp_1200x1200.jpg?

Item Code: GH-13003-A

Vertical Toggle Clamp. Overall Height 240mm. Overall Length 143mm. Holding Force 300daN.

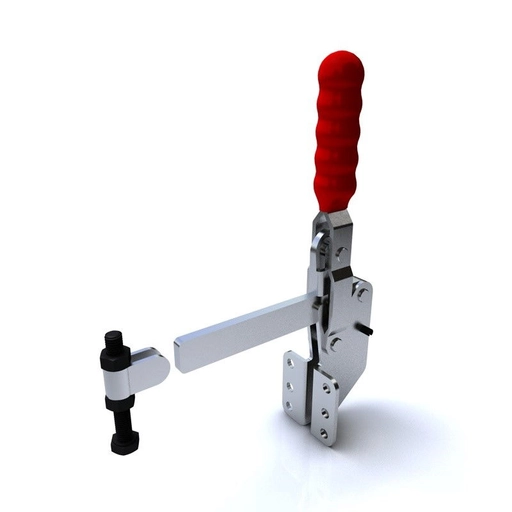

GH-13003-A Vertical Toggle Clamp with Side Mounting Base and Solid Arm Size 300daN

Holding Force: 300daN
Arm Opens: 106°
Handle Opens: 67°
Weight: 0.61Kg
Spindle Supplied: SA-086012 + BR-516

What's In The Bag
GH-13003-A Toggle Clamp
SA-086012 M8x60mm Spindle With Nuts
BR-516 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

50+ in stock

£19.32 ea. Excl VAT £23.18 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£17.77	8%
30 - 49	£16.81	13%
50 +	£16.04	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

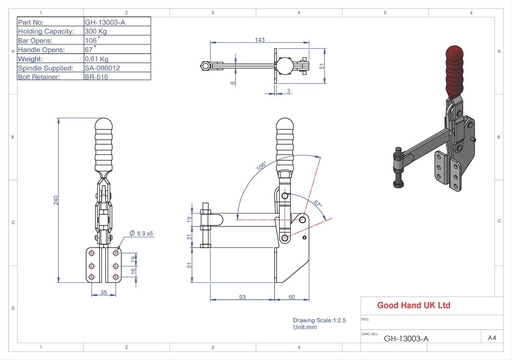

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Side Mounted
Holding Force	201-300Kg
Height	201-250mm
Total Length	101-150mm
Underarm Height	51+mm
Arm Length	76-100mm
Spindle Size	M8

Downloads

Download STP

GH-13003-A Datasheet

Vertical Toggle Clamp. Overall Height 240mm. Overall Length 143mm. Holding Force 300daN.

Vertical Toggle Clamp. Overall Height 240mm. Overall Length 143mm. Holding Force 300daN.
