Item Code: GH-10448

Vertical Toggle Clamp. Overall Height 238mm. Overall Length 89mm. Holding Force 400daN.

Item Code: GH-10448

Vertical Toggle Clamp. Overall Height 238mm. Overall Length 89mm. Holding Force 400daN.

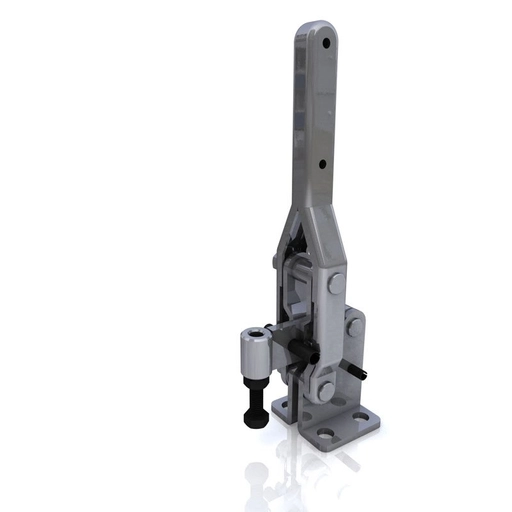

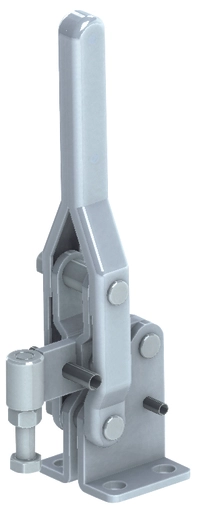

GH-10448 Vertical Toggle Clamp Flat Base Fixed Arm Size 400daN

Holding Force: 400daN
Arm Opens: 91°
Handle Opens: 62°
Weight: 0.84Kg
Spindle Supplied: SA-108015

What's In The Bag
GH-10448 Toggle Clamp
SA-108015 M10x80mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel

Quick Links

12 in stock

Fixed
Flat
301-400kg
201-250mm
51-100mm
41-50mm
26-50mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£35.13  ea. Excl VAT £42.16  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £32.32 8%
30 - 49 £30.56 13%
50 + £29.16 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force301-400kg
Height201-250mm
Total Length51-100mm
Underarm Height41-50mm
Arm Length26-50mm
Spindle SizeM10
Download STP

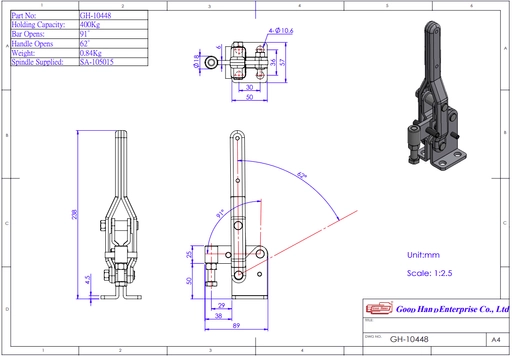

GH-10448 Datasheet
