Item Code: GH-10444

Vertical Toggle Clamp. Overall Height 238mm. Overall Length 121mm. Holding Force 400daN.

Item Code: GH-10444

Vertical Toggle Clamp. Overall Height 238mm. Overall Length 121mm. Holding Force 400daN.

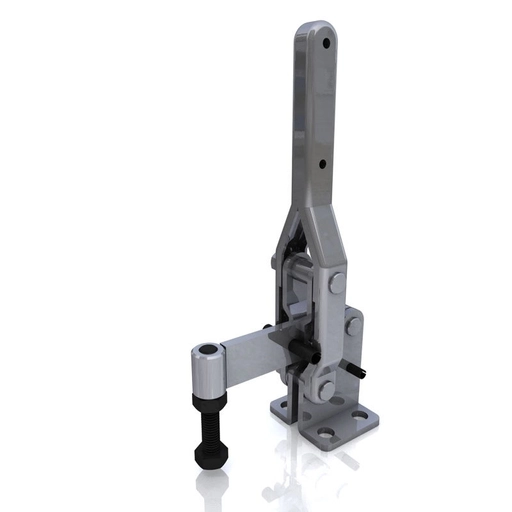

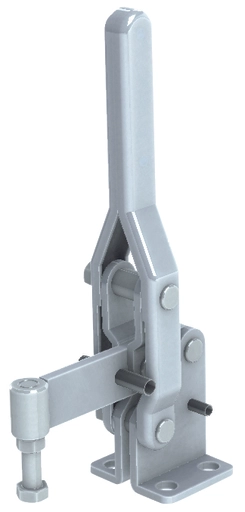

GH-10444 Vertical Toggle Clamp Flat Base Fixed Arm Size 400daN

Holding Force: 400daN
Arm Opens: 91°
Handle Opens: 62°
Weight: 0.87Kg
Spindle Supplied: SA-105015

What's In The Bag
GH-10444 Toggle Clamp
SA-108015 M10x80mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel

Quick Links

6 in stock

Fixed
Flat
301-400kg
201-250mm
101-150mm
41-50mm
51-75mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£34.07  ea. Excl VAT £40.88  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £31.34 8%
30 - 49 £29.64 13%
50 + £28.28 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force301-400kg
Height201-250mm
Total Length101-150mm
Underarm Height41-50mm
Arm Length51-75mm
Spindle SizeM10
Download STP

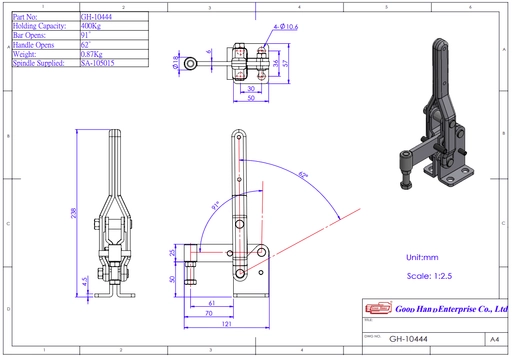

Gh-10444 Datasheet
