Item Code: GH-101-EL

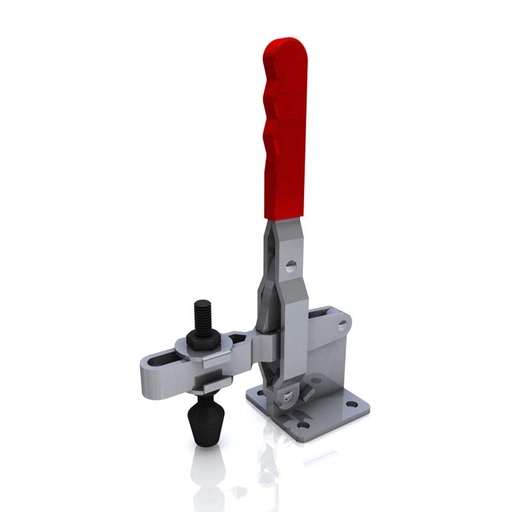

Vertical Toggle Clamp. Overall Height 232mm. Overall Length 147mm. Holding Force 360daN.

Item Code: GH-101-EL

Vertical Toggle Clamp. Overall Height 232mm. Overall Length 147mm. Holding Force 360daN.

GH-101-EL Vertical Toggle Clamp Flat Base Slotted Arm Size 360daN

Holding Force: 360daN
Arm Opens: 90°
Handle Opens: 60°
Weight: 0.84Kg
Spindle Supplied: FC-108515
Flanged Washers Supplied: FW-380

What's In The Bag
GH-101-EL Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

33 in stock

Adjustable
Flat
301-400kg
201-250mm
101-150mm
41-50mm
76-100mm
M10
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£19.25  ea. Excl VAT £23.10  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £17.71 8%
30 - 49 £16.75 13%
50 + £15.98 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force301-400kg
Height201-250mm
Total Length101-150mm
Underarm Height41-50mm
Arm Length76-100mm
Spindle SizeM10
Dowload STP

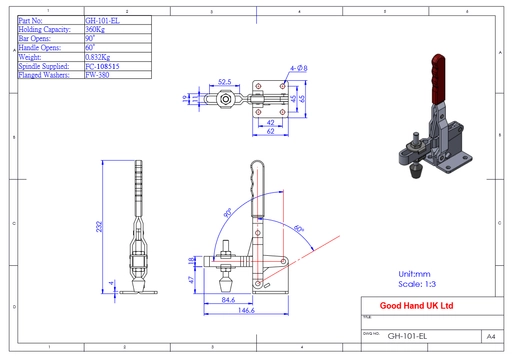

GH-101-EL Datasheet
