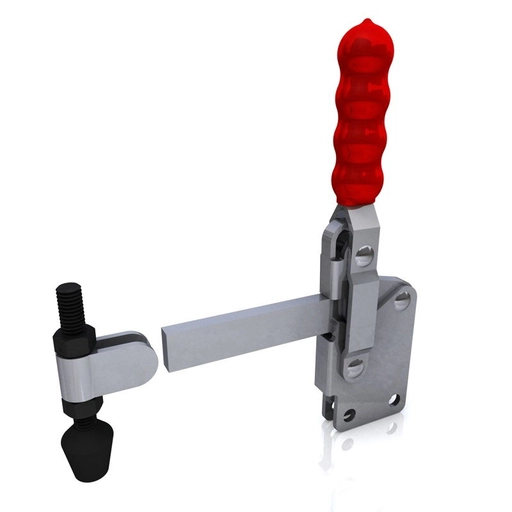

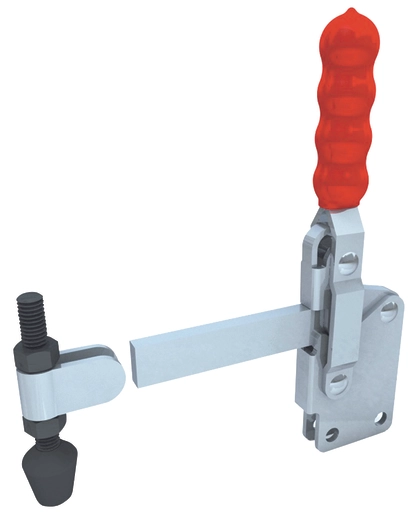

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 141mm. Holding Force 340daN.

Item Code: GH-12280

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 141mm. Holding Force 340daN.

Item Code: GH-12280

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 141mm. Holding Force 340daN.

GH-12280 Vertical Toggle Clamp Straight Base Solid Arm Size 340daN

Holding Force: 340daN
Arm Opens: 105°
Handle Opens: 58°
Weight: 0.68Kg
Spindle Supplied: FC-108515
Bolt Retainer Supplied: BR-380

What's In The Bag
GH-12280 Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
BR-380 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Bolt Retainer Supplied But Not Attached, Customer To Assemble

Quick Links

50+ in stock

£21.64 ea. Excl VAT £25.97 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£19.91	8%
30 - 49	£18.83	13%
50 +	£17.96	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

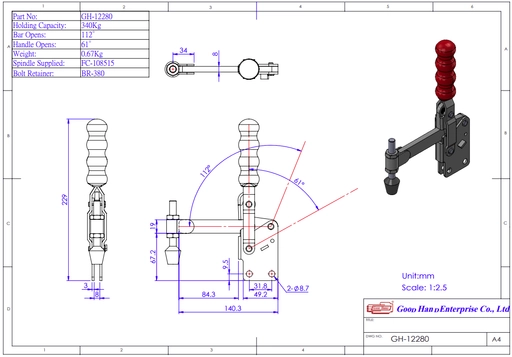

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Straight
Holding Force	301-400kg
Height	201-250mm
Total Length	101-150mm
Underarm Height	51+mm
Arm Length	76-100mm
Spindle Size	M10

Downloads

Download STP

GH-12280 Datasheet
