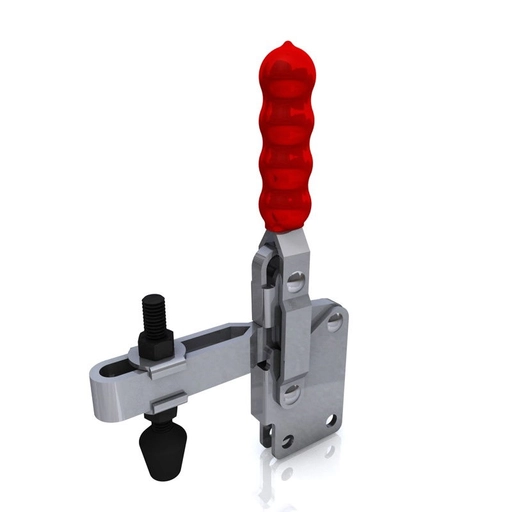

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 140mm. Holding Force 340daN.

Item Code: GH-12270

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 140mm. Holding Force 340daN.

Item Code: GH-12270

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 140mm. Holding Force 340daN.

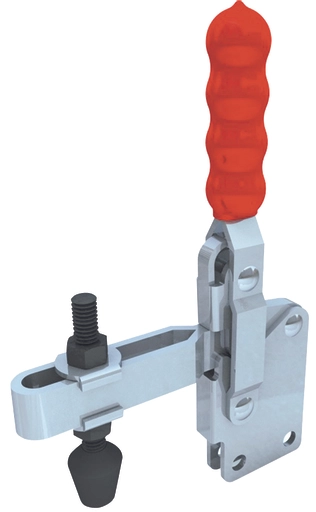

GH-12270 Vertical Toggle Clamp Straight Base Slotted Arm Size 340daN

Holding Force: 340daN
Arm Opens: 105°
Handle Opens: 58°
Weight: 0.635Kg
Spindle Supplied: FC-108515
Flanged Washers Supplied: FW-380

What's In The Bag
GH-12170 Toggle Clamp
FC-108515 M10x85mm Neoprene Tipped Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

Dispatch by 16/06/25

£19.53 ea. Excl VAT £23.44 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£17.97	8%
30 - 49	£16.99	13%
50 +	£16.21	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Specifications

Arm Type	Adjustable
Base Type	Straight
Holding Force	301-400kg
Height	201-250mm
Total Length	101-150mm
Underarm Height	51+mm
Arm Length	76-100mm
Spindle Size	M10

Downloads

Download STP

GH-12270 Datasheet

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 140mm. Holding Force 340daN.

Vertical Toggle Clamp. Overall Height 229mm. Overall Length 140mm. Holding Force 340daN.
