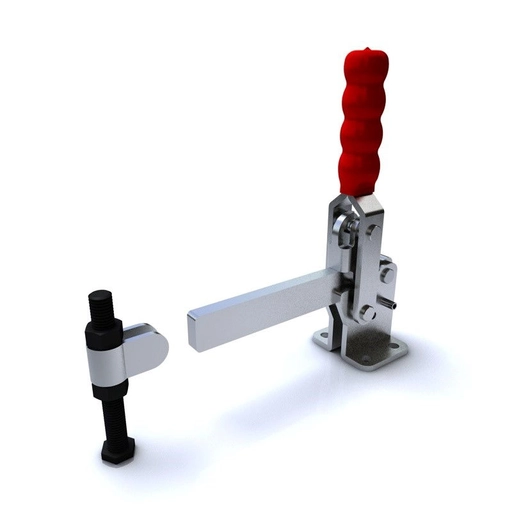

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 181mm. Holding Force 450daN.

Item Code: GH-14502-A

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 181mm. Holding Force 450daN.

Item Code: GH-14502-A

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 181mm. Holding Force 450daN.

GH-14502-A Vertical Toggle Clamp Flat Base Solid Arm Size 450daN

Holding Force: 450daN
Arm Opens: 90/125°
Handle Opens: 70/85°
Weight: 1.3Kg
Spindle Supplied: SA-121017 + BR-120

What's In The Bag
GH-14502-A Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
BR-120 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

20 in stock

£37.12 ea. Excl VAT £44.54 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£34.15	8%
30 - 49	£32.29	13%
50 +	£30.81	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

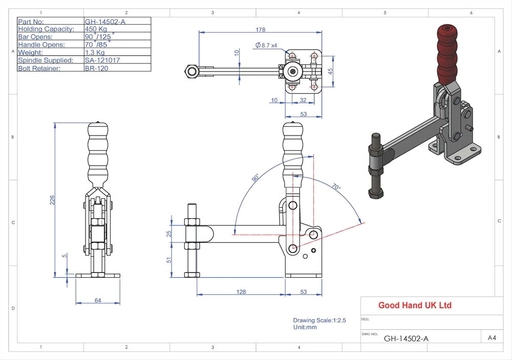

Product Dimensions

Specifications

Arm Type	Solid
Base Type	Flat
Holding Force	401+kg
Height	201-250mm
Total Length	151-200mm
Underarm Height	51+mm
Arm Length	101+mm
Spindle Size	M12

Downloads

Download STP

GH-14502-A Datasheet

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 181mm. Holding Force 450daN.

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 181mm. Holding Force 450daN.
