Item Code: GH-10247

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 180mm. Holding Force 450daN.

Item Code: GH-10247

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 180mm. Holding Force 450daN.

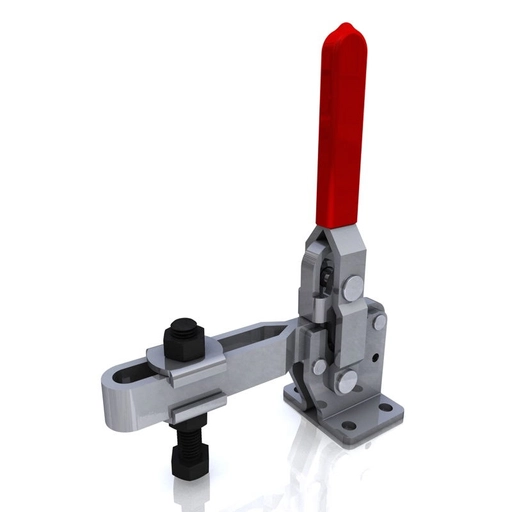

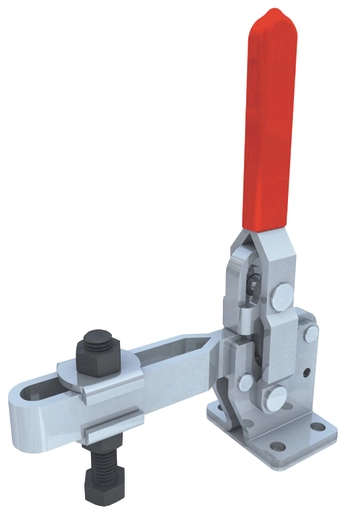

GH-10247 Vertical Toggle Clamp Flat Base Slotted Arm Size 450daN

Holding Force: 450daN
Arm Opens: 100°
Handle Opens: 58°
Weight: 1.25Kg
Spindle Supplied: SA-121017
Flanged Washers Supplied: FW-120

What's In The Bag
GH-10247 Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

37 in stock

Adjustable
Flat
401+kg
201-250mm
151-200mm
51+mm
101+mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£32.59  ea. Excl VAT £39.11  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £29.98 8%
30 - 49 £28.35 13%
50 + £27.05 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force401+kg
Height201-250mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM12
Download STP

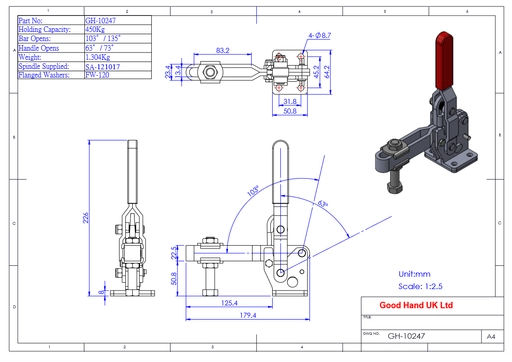

GH-10247 Datasheet
