Item Code: GH-10249

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 179mm. Holding Force 450daN.

Item Code: GH-10249

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 179mm. Holding Force 450daN.

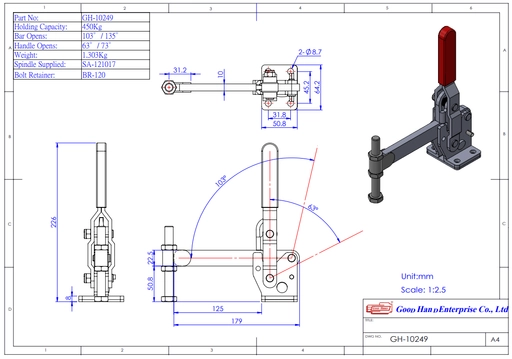

GH-10249 Vertical Toggle Clamp Flat Base Solid Arm Size 450daN

Holding Force: 450daN
Arm Opens: 103°
Handle Opens: 63°
Weight: 1.303Kg
Spindle Supplied: SA-121017
Bolt Retainer Supplied: BR-120

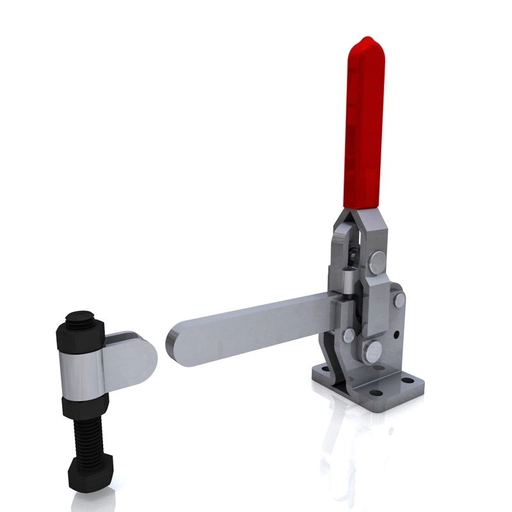

What's In The Bag
GH-10249 Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
BR-120 Bolt Retainer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC
Bolt Retainer: Zinc Plated Mild Steel

Bolt Retainer Supplied But Not Attached, Customer To Weld At Desired Angle

Quick Links

37 in stock

101+mm
Solid
Flat
201-250mm
401+kg
M12
151-200mm
51+mm

£33.30  ea. Excl VAT £39.96  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £30.64 8%
30 - 49 £28.97 13%
50 + £27.64 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Arm Length101+mm
Arm TypeSolid
Base TypeFlat
Height201-250mm
Holding Force401+kg
Spindle SizeM12
Total Length151-200mm
Underarm Height51+mm
Download STP
GH-10249 Datasheet
