Item Code: GH-14502-B

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 177mm. Holding Force 450daN.

Item Code: GH-14502-B

Vertical Toggle Clamp. Overall Height 226mm. Overall Length 177mm. Holding Force 450daN.

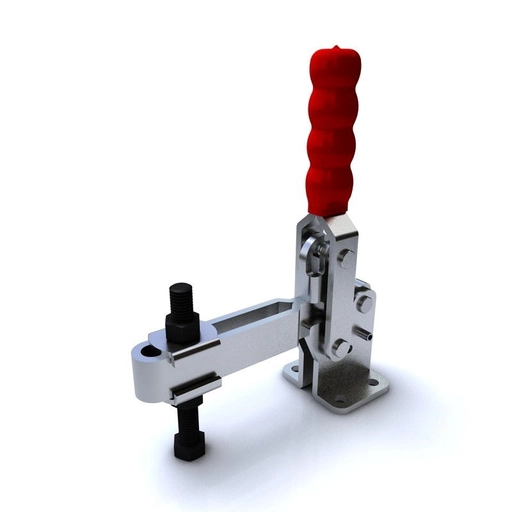

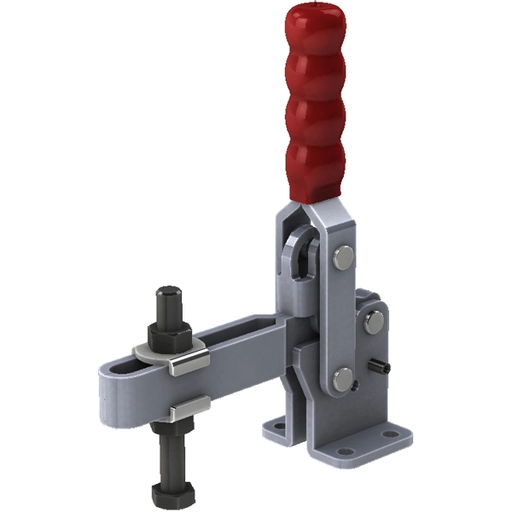

GH-14502-B Vertical Toggle Clamp Flat Base Slotted Arm Size 450daN

Holding Force: 450daN
Arm Opens: 90/125°
Handle Opens: 70/85°
Weight: 1.3Kg
Spindle Supplied: SA-121017
Flanged Washers Supplied: FW-120

What's In The Bag
GH-14502-B Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
401+kg
201-250mm
151-200mm
51+mm
101+mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£35.89  ea. Excl VAT £43.07  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £33.02 8%
30 - 49 £31.22 13%
50 + £29.79 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force401+kg
Height201-250mm
Total Length151-200mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM12
Download STP

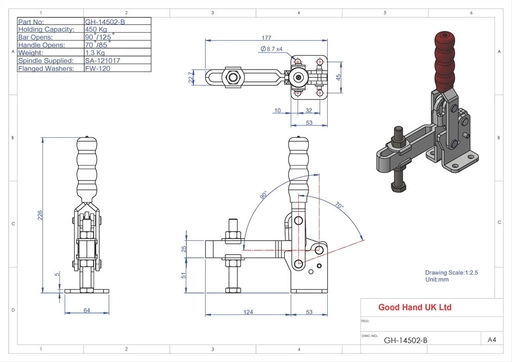

GH-14502-B Datasheet
